Contact Rating: 6VDC 300mA
Electrical life: 50,000 cycles
Mechanical life ： 100,000cycles min ；
Insulation Resistance ：＞ 100M Ω DC250V ；
Withstand Voltage ： AC250V 1 minute ；
Contact Resistance ：＜ 50m Ω；
Ambient Temper. ： -25 ℃ to 85 ℃；
Operating Force ： 40 ± 15gf.
Return Force ：
25gf.
Soldering Process: Hand soldering ： Use a soldering iron of 30 watts, controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Wave soldering （ Figure 1 ）
cycles ；

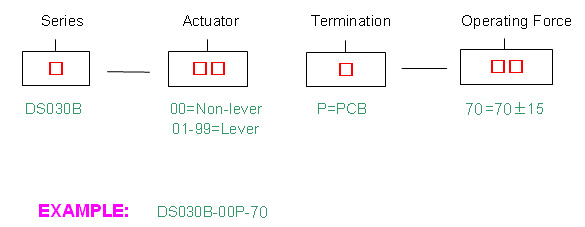

DS030B-00P-70
