Contact Rating：0.1A @ 48VDC; 0.1A @125VAC
Electrical life：3,000,000 cycles
Mechanical life ：3,000,000 cycles min
Insulation Resistance：＞ 100M Ω DC250V
Withstand Voltage：AC250V 1 minute
Contact Resistance：＜ 300m Ω
Ambient Temper.：-25 ℃ to 85 ℃
Operating Force：70 ± 20gf.
Soldering Process：Hand soldering ： Use a soldering iron of 30 watts, controlled at 380 ℃ approximately 3 seconds while applying solder.

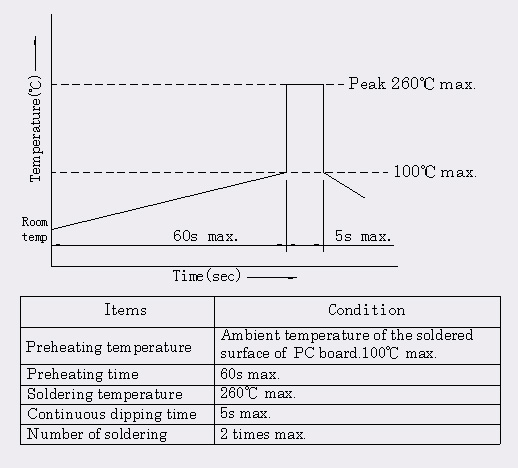

Wave soldering：When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Wave soldering （ Figure 1 ）
cycles
