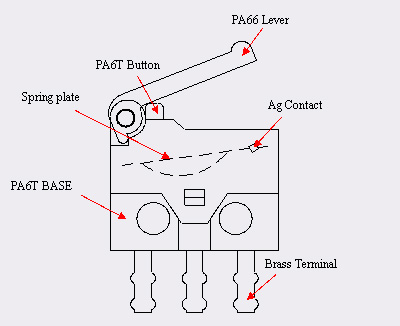

Switch Lever: NYLON (UL94 V-0) Switch Cover: NYLON (UL94 V-0) Color: Black Switch Base: NYLON (UL94 V-0) Color: Black Actuating Button: NYLON (UL94 V-0) Color： Black Terminals: Brass (Plating silver) Contacts: Ag Spring plate: Be Cu Alloy

Contact Rating: 0.3A @ DC6V;
Electrical life: 50,000 cycles
Mechanical life ： 100,000 cycles min
Insulation Resistance ：＞ 100M Ω DC100V
Withstand Voltage ： AC250V 1 minute
Contact Resistance ：＜ 100m Ω
Ambient Temper. ： -25 ℃ to 85 ℃
Operating Force ： 10 ~ 30 gf
Soldering Process：Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.

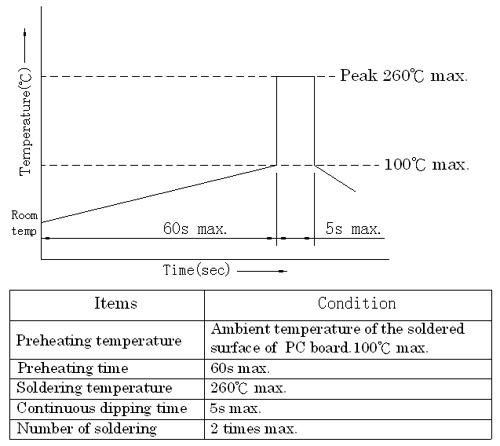

Wave soldering：When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:

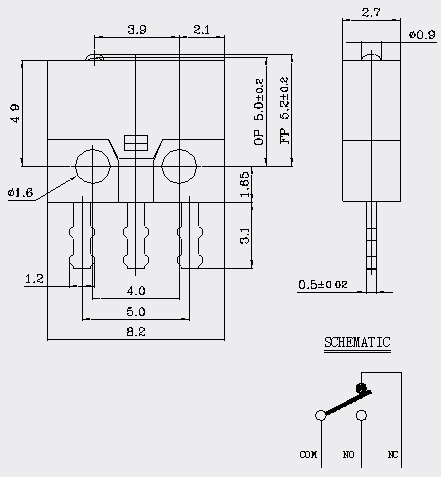

DS037-00P-60

DS037- □ P-30

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
