Contact Rating: 0.1A @ 48VDC;0.1A@125VAC
Electrical life: 1,000,000 cycles
Mechanical life ： 1,000,000 cycles min ；
Insulation Resistance ：＞ 100M Ω DC250V
Withstand Voltage ： AC250V 1 minute ；
Contact Resistance ：＜ 100m Ω；
Ambient Temper. ： -25 ℃ to 70 ℃；
Operating Force ：
Soldering Process : Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.

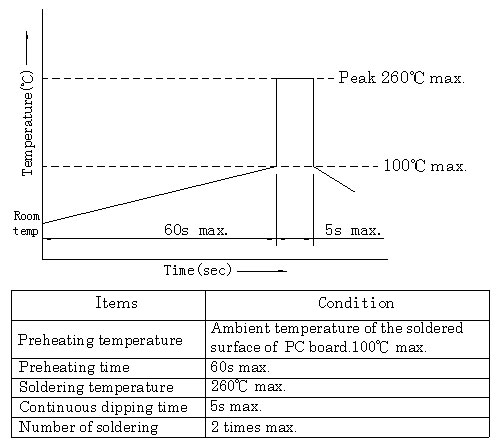

Wave soldering ：When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
