Contact Rating：0.1A @ 48VDC;0.1A@125VAC
Electrical life：1,000,000 cycles
Mechaanical life：1,000,000 cycles min
Insulation Resistance：＞100MΩ DC250V
Withstand Voltage：AC250V 1 minute
Contact Resistance：＜300mΩ
Ambient Temper.：-25℃ to 70℃
Operating Force：70gf
Soldering Process：Hand soldering：Use a soldering iron of 30 watts,controlled at 360℃ approximately 3 seconds while applying solder.

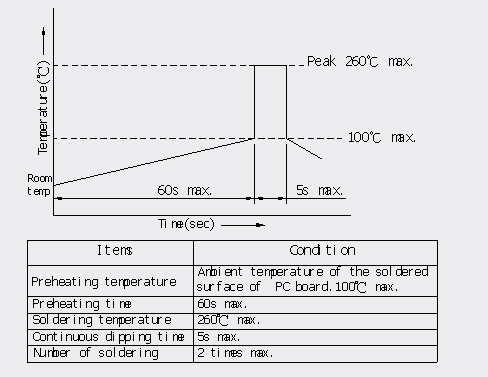

Wave soldering：: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1）

Wave soldering（Figure 1）
