MS5 Series pump SWITCH （ Sub-Miniature Snap-Action pump Switches ）
Home > Products > Micro Switches > MS5 Series
FEATURES:
  • Mechanical life ： min.100 ， 000 cycles
  • Good feeling and more actuators and more terminals are applied

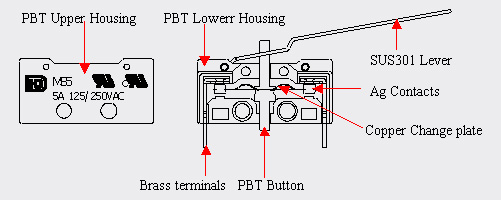

MATERIALS
  • Upper Housing: High Temperature PBT (UL94 V-0)
  • Lower Housing: High Temperature PBT (UL94 V-0)
  • Actuating Button: High Temperature PBT (UL94 V-0)
  • Change Plate ： copper
  • Terminals: Brass(Plating silver)
  • Contacts: Ag
  • lever: SUS301
  • Auxiliary Actuator: Stainless Steel
SPECIFICATIONS

Mechanical life ： 100,000 cycles min
Contact Rating: 5Amps @ 125/250 VAC; CUL, UL 10,000 cycles
Insulation Resistance ：＞ 100M Ω DC500V
Withstand Voltage ： AC1,000V 1 minute
Contact Resistance ：＜ 50m Ω
Operating Temper. ： -25 ℃ to 80 ℃
Operating Force ： 5 ± 2 gf
Hand Soldering. ： Use a soldering iron of 30 watts ， controlled at 380 ℃ approximately 3 seconds while applying solder

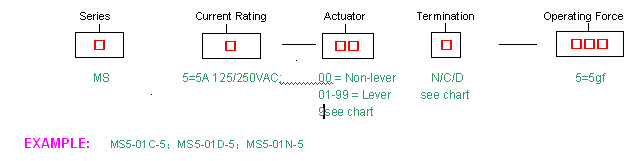

HOW TO ORDER

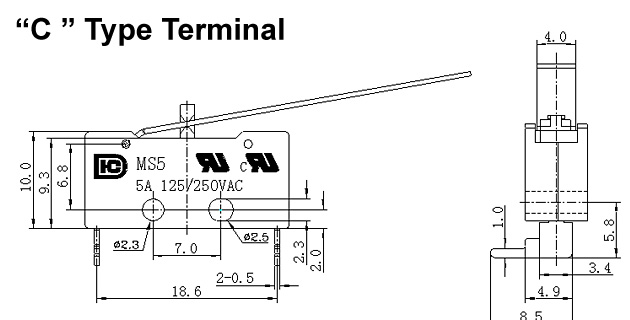

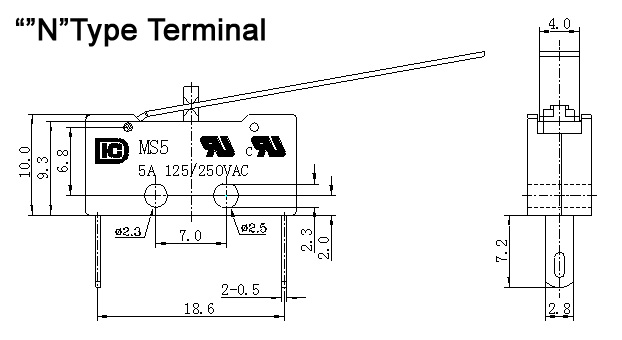

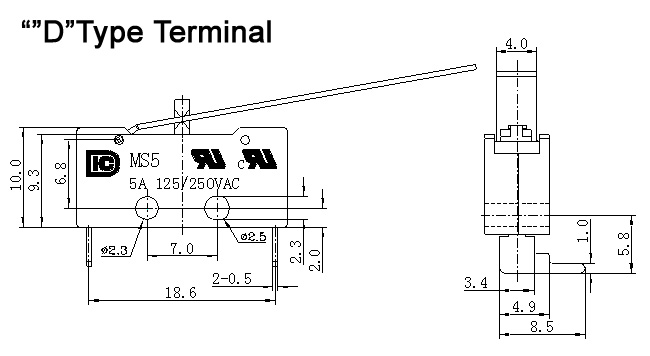

TERMINAL OPTIONS (mm)

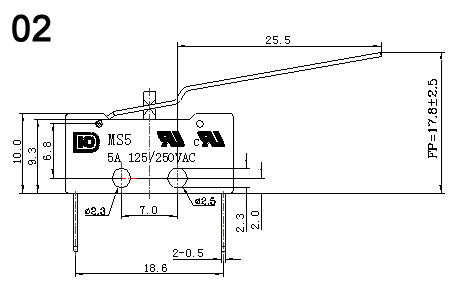

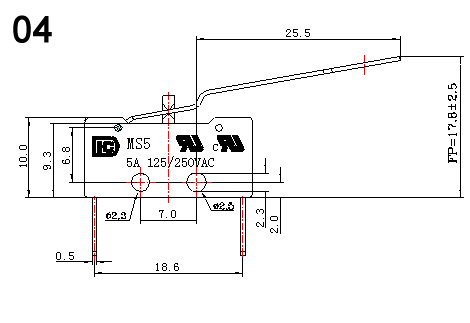

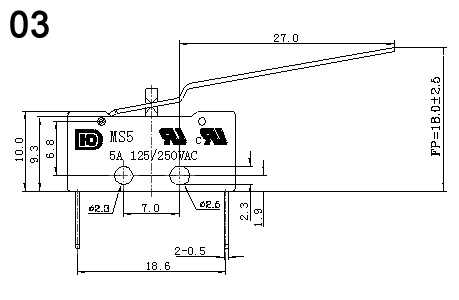

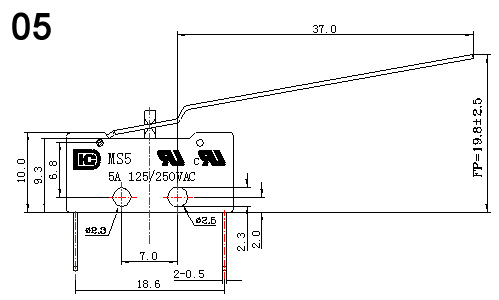

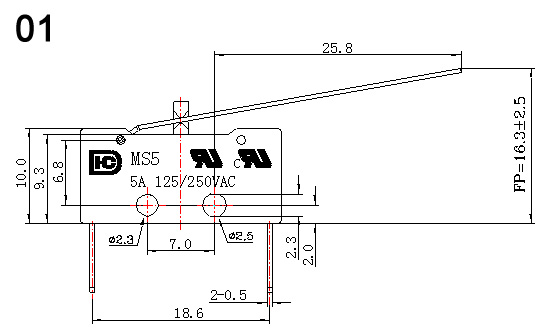

ACTUATOR SPECIFICATIONS （ mm ）

PACKING EXPLANATION ： 3248pcs for one box (232pcs for one trag, 1 trag for one small box ,14 small boxes for one big box)
