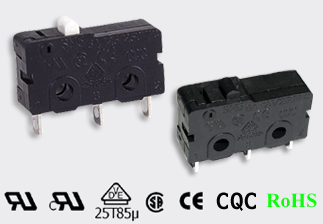

FEATURES:
- Mechanical life：min.1 x 106 cycles
- Good feeling and more actuators and
more terminals are applied
|
|

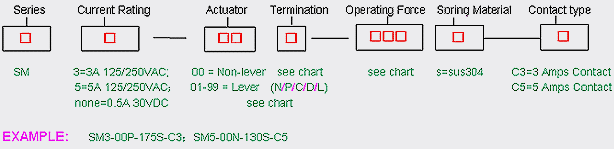

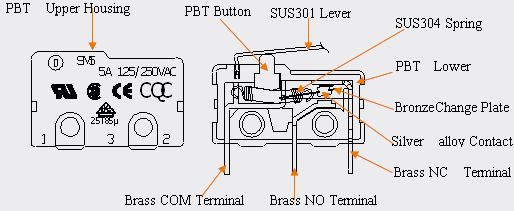

| MATERIALS |
Upper Housing: High Temperature PBT (UL94 V-0)
Lower Housing: High Temperature PBT (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Chang Plate: Bronze
NC、NO、COM Terminals: Brass(Plating silver)
Contacts: Silver Alloy or plating Gold
Spring: SUS304
Auxiliary Actuator: Stainless Steel |
|
|
| SPECIFICATION |
Mechanical life: 1,000,000 cycles min；
| Contact Rating: |
5Amps @ 125/250 VAC; CUL, UL 10,000 cycles; VDE 10,000 cycles |
| |
3 Amps @ 125 /250VAC ; CUL,UL 10,000 cycles;VDE10,000 cycles |
| |
0.5 Amps @ 30VDC ; CUL,UL 10,000 cycles; |
Insulation Resistance:＞100MΩ DC500V；
Withstand Voltage:AC1,000V 1 minute；
Contact Resistance:＜100mΩ；
Operating Temper.:-25℃ to 85℃；
Operating Force:See Chart
Hand Soldering.:Use a soldering iron of 30 watts，controlled at 380℃ approximately 3
seconds while applying solder |
| ACTUATOR AND OPERATING FORCE CHART |
ACTUATOR |
OPERATING FORCE(gf) |
FP(mm) |
OP(mm) |
REMARK |
00
（NO LEVER） |
80±25 |
95±30 |
115±40 |
130±40 |
150±40 |
175±45 |
190±45 |
250±50 |
295±55 |
11.9 ± 0.3 |
11.3±0.3 |
|
01 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±25 |
55±25 |
70±25 |
85±30 |
14.0 ± 0.8
|
12.0±0.8 |
02 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
14.2 ± 0.8
|
12.1±0.8 |
03 |
15±6 |
20±8 |
25±12 |
25±12 |
30±12 |
35±20 |
40±20 |
55±25 |
60±25 |
15.0 ± 1.0
|
12.4±0.8 |
04 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
16.7 ± 0.8
|
14.5±0.8 |
05 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
19.8 ± 1.0
|
17.8±1.0 |
74 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
15.0 ± 1.5
|
13.9±1.5 |
75 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
17.3 ± 1.5 |
16.0±1.5 |
76 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
15.0 ± 1.0 |
13.8±1.0 |
79 |
20±8 |
25±12 |
30±12 |
35±20 |
40±20 |
45±20 |
50±20 |
65±25 |
75±25 |
17.9 ± 0.8 |
15.9±0.8 |
|
| TERMINAL OPTIONS mm( Inches) |
|
PACKING EXPLANATION: |
Hacing different transport and exist differ package:
- 100 PCS for one case,78 cases for one box;
- HK:100 PCS for one case, 78 cases for one box;
- TAIWAN:100PCS FOR ONE CASE,76 CASES FOR ONE BOX;
- 30gf MAX of“OF” is packaged 15 cases for one box;
- Longer lever：such as SM-07、SM-28 etc. type packaged 80 PCS for one case.
|
|
|
