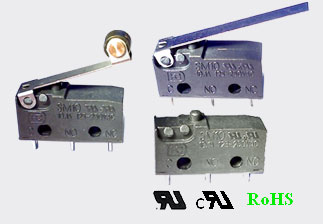

SM10 Series Switch (Sub-Miniature Snap-Action Switches)
Home > Products > Micro Switches > SM10 Series Switch

FEATURES:

  • Mechanical life：min.1 x 10cycles
  • Good feeling and more actuators and more terminals are applied
SPECIFICATION

Mechanical life：1,000,000 cycles min
Contact Rating：10.1Amps@125/250 VAC; CUL, UL 6,000 cycles
Insulation Resistance：＞100MΩ DC500V
Withstand Voltage：AC1,000V 1 minute
Contact Resistance：＜50mΩ
Operating Temper.：-25°C to 75°C；
Operating Force：See Chart
Hand Soldering.：Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder。

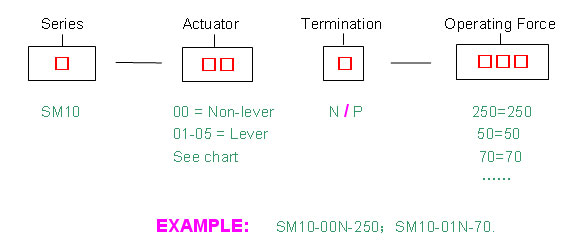

HOW TO ORDER
ACTUATOR AND OPERATING FORCE CHART
ACTUATOR
OPERATING FORCE(gf)
FP(mm)
OP(mm)
REMARK
00
220±50 / 250±50
11.4±0.5
10.8±0.5

01
70±20
15.9 ±0.8
13.2±0.8

02
50±20
18.0±1.0
13.8 ±1.0

03
80±25
20.5±1.0
18.6±1.0

04
70±20
15.0±0.8
12.0±0.8

05
80±25
14.0±0.8
12.0±0.8

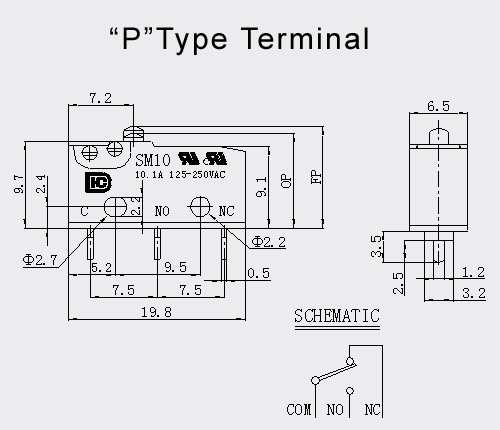

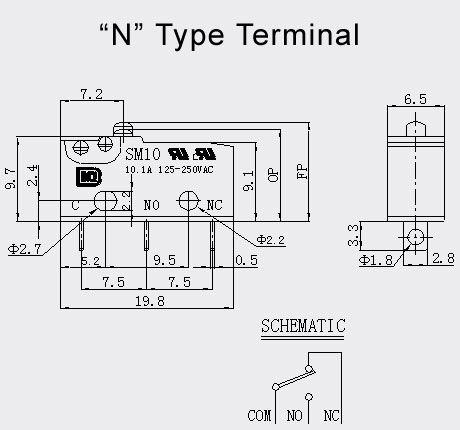

TERMINAL OPTIONS mm( Inches)

PACKING EXPLANATION:

port and exist differ package: 100 PCS for one case,78 cases for one box;HK:100 PCS for one case, 78 cases for one box;?TAIWAN:100PCS FOR ONE CASE,76 CASES FOR ONE BOX;30gf MAX of“OF” is packaged 15 cases for one box ； Longer lever ： such as SM-07 、 SM-28 etc. type packaged 80 PCS for one case.
