FEATURES:
- Protection against ingress of dust
 φ1.0mm(ⅠP5X);
- Protection against ingress of water(ⅠPX1);
- Good feeling and more actuators and more terminals are applied
|
|
| MATERIALS |
Upper Housing: Nylong66 (UL94 V-0)
Base: Nylong66 (UL94 V-0)
Actuating Button: High Temperature PBT (UL94 V-0)
Cap: Rubber (UL94 V-0)
Chang Plate: Bronze
NC、NO、COM Terminals: Brass(Plating silver)
Contacts: Silver Alloy or plating Gold
Spring: SUS304
Auxiliary Actuator: Stainless Steel |
|
|
| SPECIFICATION |
Mechanical life：100,000 cycles min；
Contact Rating: 0.1Amps @ 125 VAC; CUL, UL 10,000 cycles
Insulation Resistance:＞100MΩ DC500V；
Withstand Voltage:AC6000V 1 minute；
Contact Resistance:＜100mΩ；
Operating Temper.:-25℃ to 85℃；
Operating Force:See Chart
Hand Soldering.:Use a soldering iron of 30 watts，controlled at 380℃
approximately 3
seconds while applying solder |
PACKING EXPLANATION： |
Hacing different transport and exist differ package:
- 90 PCS for one case,78 cases for one box;
- HK:90 PCS for one case, 78 cases for one box;
- TAIWAN:90 PCS FOR ONE CASE,76 CASES FOR ONE BOX;
|
 |

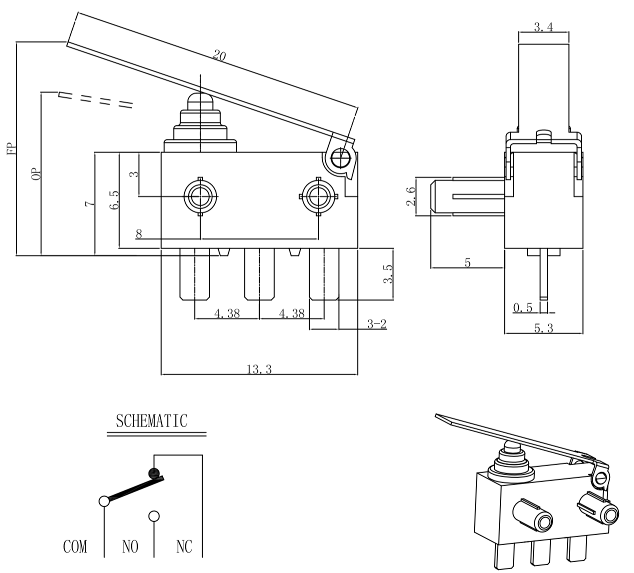

DIMENSION DRAWING
|
|
|
