SS008(2) Series Switch (Slide Switches)
Home > Products > Slide Switches > SS008(2) Series

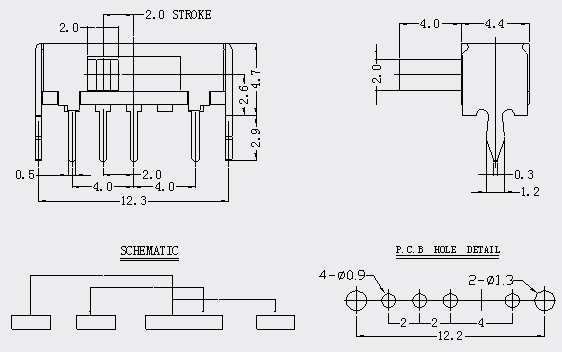

DIMENSION DRAWING of SS008- 02 P- 12B-Y (mm)

SS008- 02 P- 12B-Y

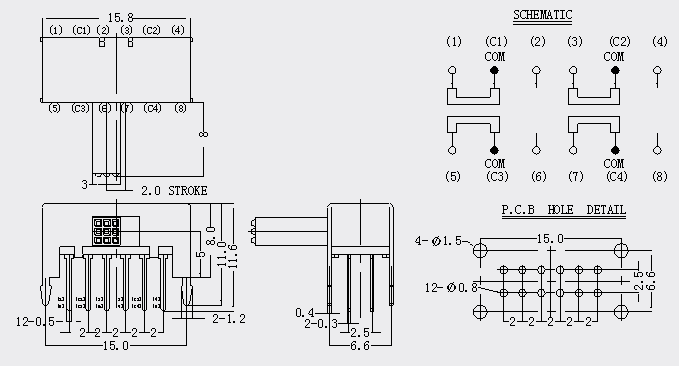

DIMENSION DRAWING of SS008-05P-42-F-Y (mm)

SS008-05P-42-F-Y

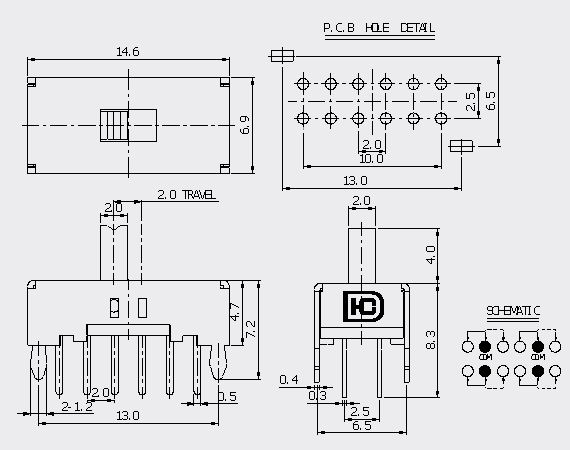

DIMENSION DRAWING of SS008-01P-23-Y (mm)

SS008-01P-23-Y

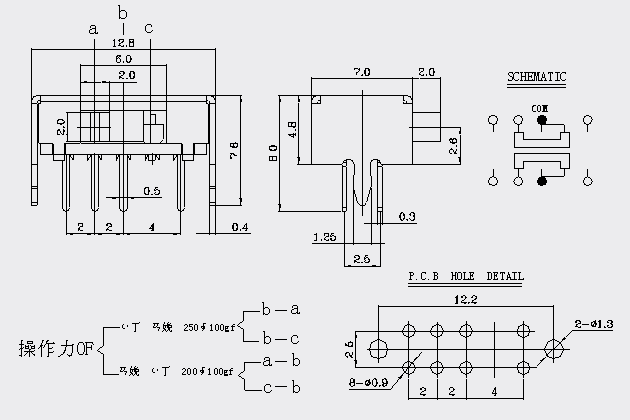

DIMENSION DRAWING of SS008H-02P-22-Y (mm)

SS008H-02P-22-Y

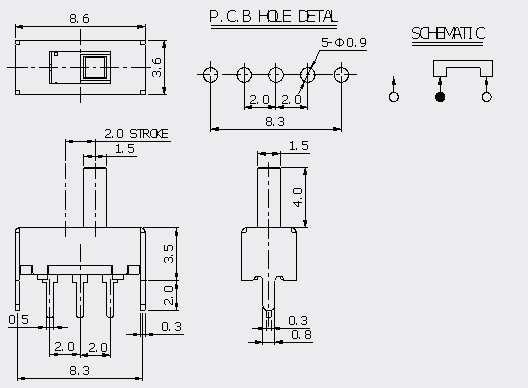

DIMENSION DRAWING of SS008H-02P-23-Y (mm)

SS008H-02P-23-Y

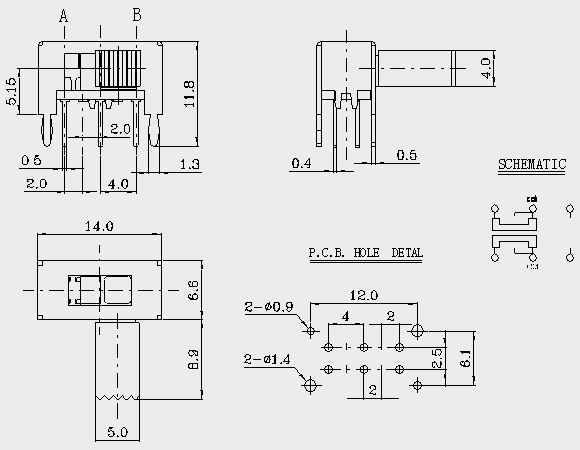

DIMENSION DRAWING of SS008MB-02P-12-Y (mm)

SS008MB-02P-12-Y

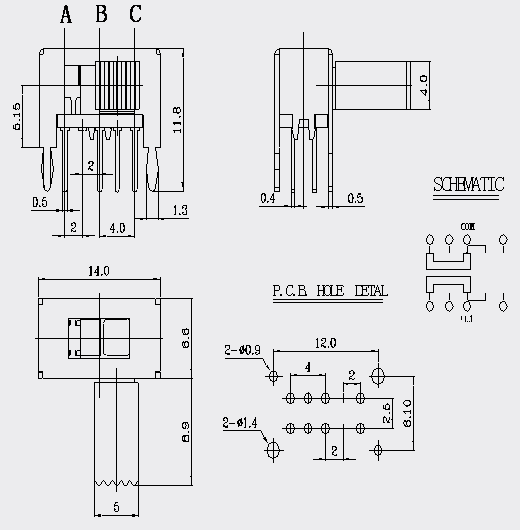

DIMENSION DRAWING of SS008B-02P-42-G-Y (mm)

SS008B-02P-42-G-Y

PACKING EXPLANATION:
30,000 PCS for one big box (1,000 PCS for one bag, 5 bags for one small carton,6small cartons for one big box.)
