SS008 Series Switch (Slide Switches)
Home > Products > Slide Switches > SS008 Series
FEATURES:
  • A miniaturized push button switch
  • The double sliding contact structures high reliability


SPECIFICATION

Mechanical life: 30,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @30 VDC
Insulation Resistance:＞100MΩ DC250V
Withstand Voltage: AC250 1 minute
Contact Resistance: ＜50mΩ
Ambient Humidity:＜85%RH
Operating Temper.：-25℃ to 70℃
Operating Force： 200±150gf
Soldering process: Hand Soldering：Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder.

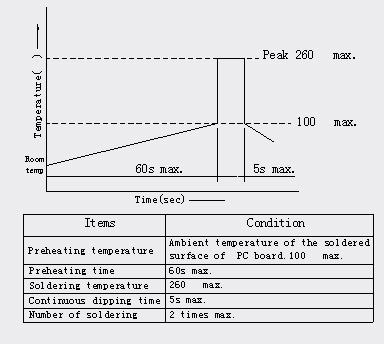

Wave soldering: When applying wave soldering, the plastic using PA6T(HTN)，the peak temperature of the wave Oven should be set to 260℃ max. Condition for soldering (Wave & Non-washable Type)Temperature Profile:
MATERIALS
Case: Spcc
Base: Bakelite
Stem: NILONG
Terminals: Brass(Plating silver)
Spring plate: C5210
Clip :C5210

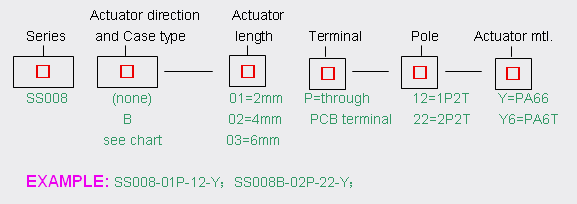

HOW TO ORDER

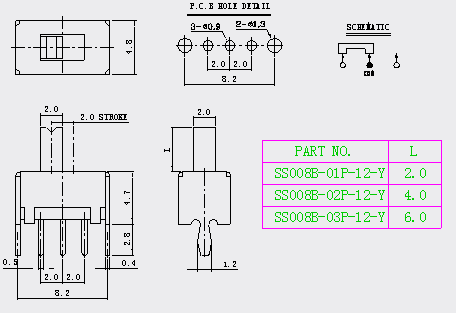

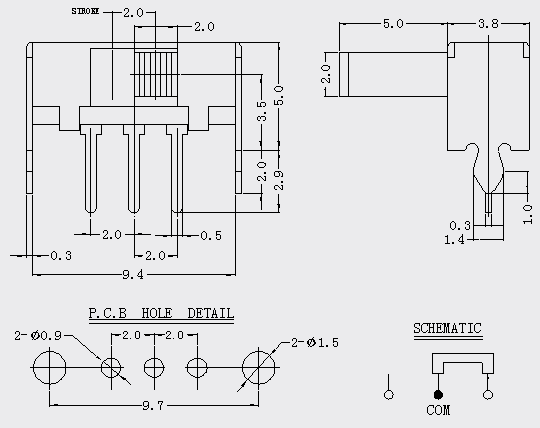

DIMENSION DRAWING of SS008- □P-12-Y/Y6 (mm)

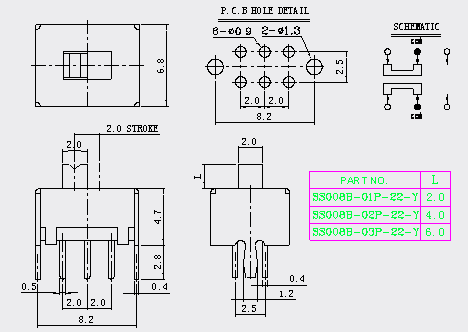

DIMENSION DRAWING of SS008B- □P-12-Y/Y6 (mm)

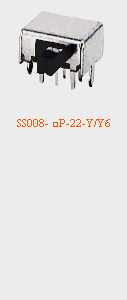

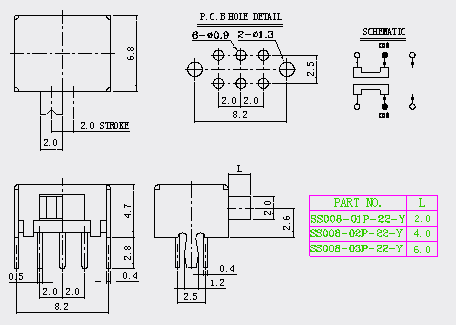

DIMENSION DRAWING of SS008- □P-22-Y/Y6 (mm)
DIMENSION DRAWING of SS008B- □P-22-Y/Y6 (mm)

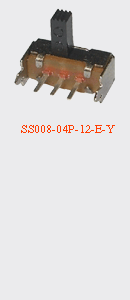

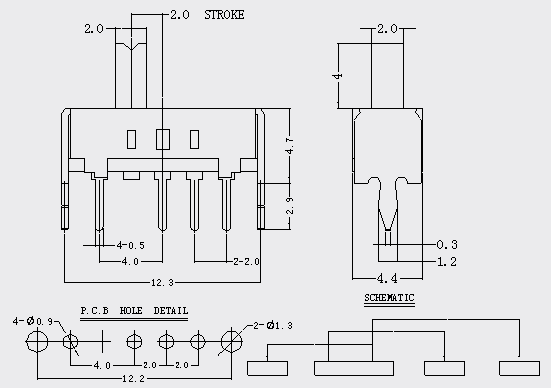

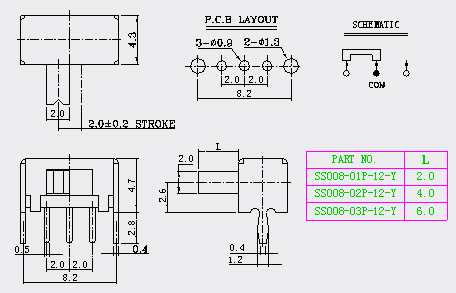

DIMENSION DRAWING of SS008-04P-12-E-Y (mm)

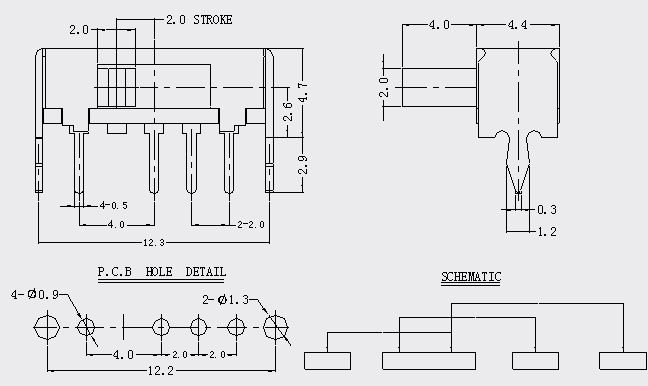

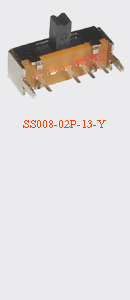

DIMENSION DRAWING of SS008-02P-13-Y (mm)

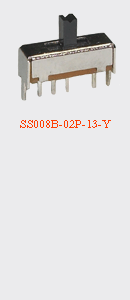

DIMENSION DRAWING of SS008B-02P-13-Y (mm)

PACKING EXPLANATION:

30,000 PCS for one big box
(1,000 PCS for one bag, 5 bags for one small carton,6small cartons for one big box.)
