SS031 Series SWITCH (SLIDE Switches)
Home > Products > Slide Switches > SS031 Series
FEATURES:
  • A Slide Switch
  • The double sliding contact structures high reliability

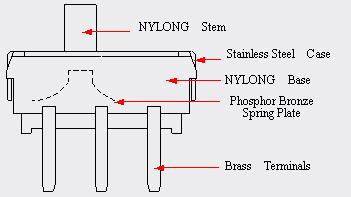

MATERIALS

Stem: High Temperature NYLONG (UL94 V-0)
Case: Stainless Steel
Base: High Temperature NYLONG (UL94 V-0)
Terminals: Brass
Spring plate: Phosphor Bronze
SPECIFICATIONS

Mechanical life ： 10,000 cycles min
Electrical life ： 10,000 cycles min
Contact Rating ： 0.3Amps @6 VDC
Insulation Resistance ：＞ 100M Ω DC250V
Withstand Voltage ： AC250V 1 minute
Contact Resistance ：＜ 70m Ω
Ambient Humidity ： ＜ 85%RH
Operating Temper. ： -25 ℃ to 70 ℃
Operating Force ： 250 ± 150gf
Soldering Process: Hand soldering ： Use a soldering iron of 30 watts, controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering ： When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Reflow soldering ： When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 2 ）

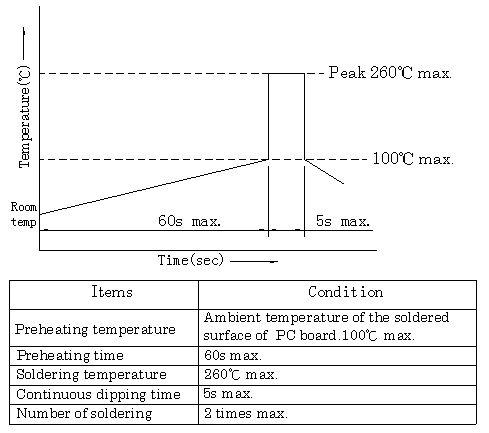

Wave soldering （ Figure 1 ）

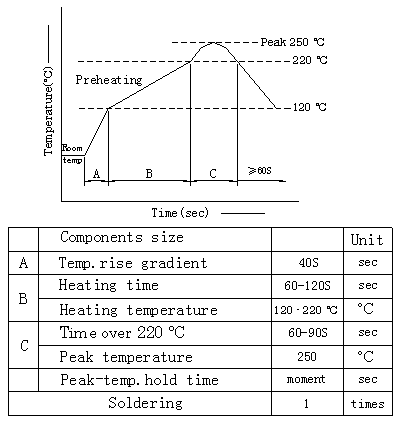

Rellow soldering （ Figure 2

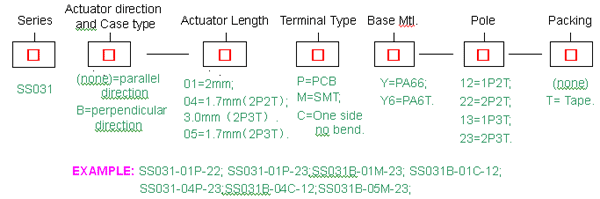

HOW TO ORDER

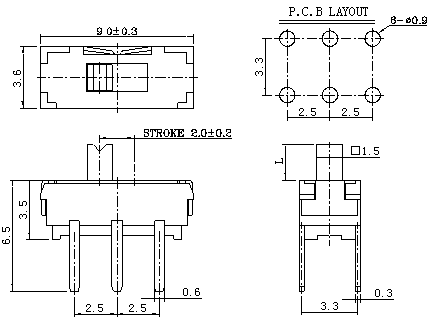

TERMILAL OPTIONS OF SS031-01P -22 （ mm ）

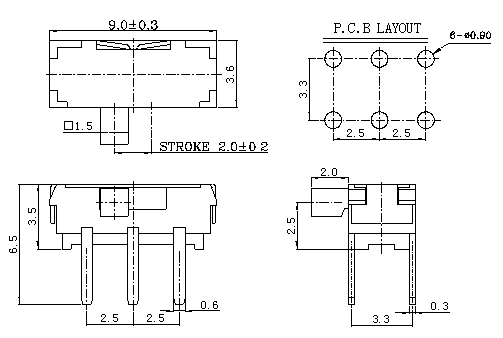

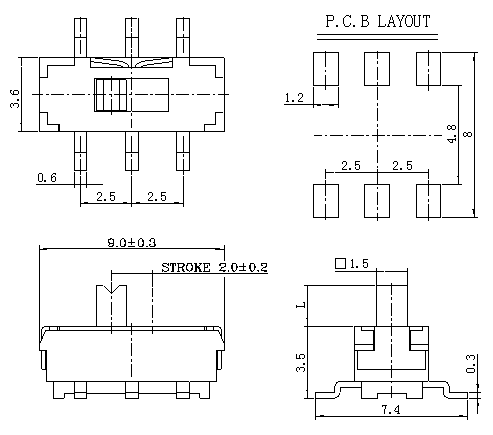

TERMILAL OPTIONS OF SS031B- □P -22 （ mm ）

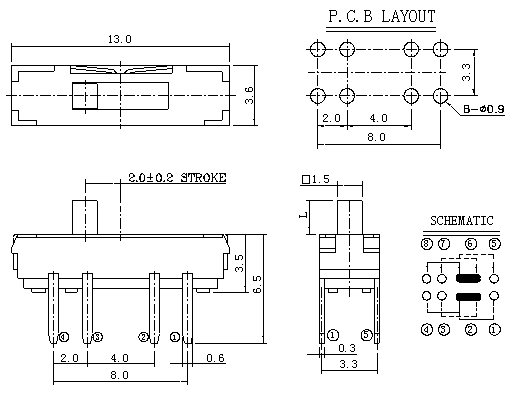

TERMILAL OPTIONS OF SS031- □P-23 （ mm ）

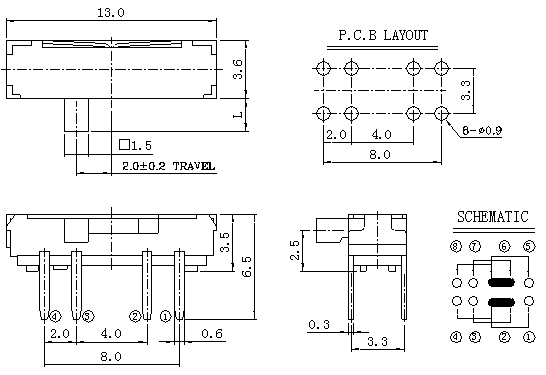

TERMILAL OPTIONS OF SS031B- □P-23 （ mm ）

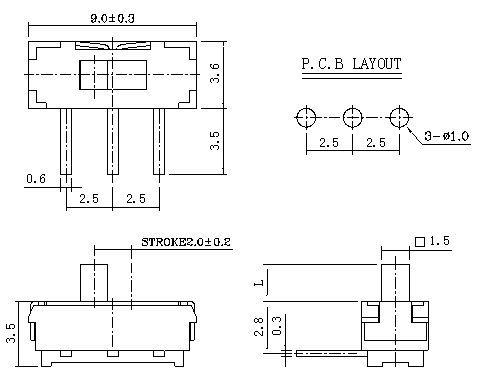

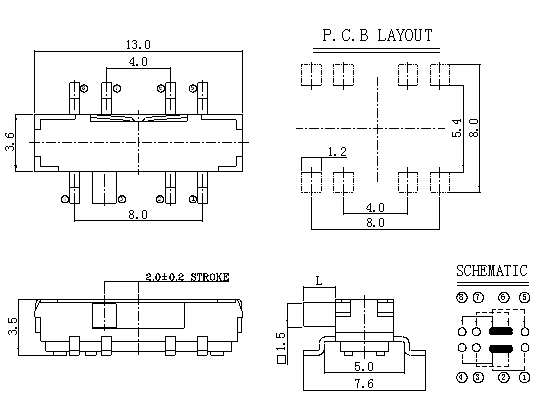

TERMILAL OPTIONS OF SS031- □ M -23 （ mm ）

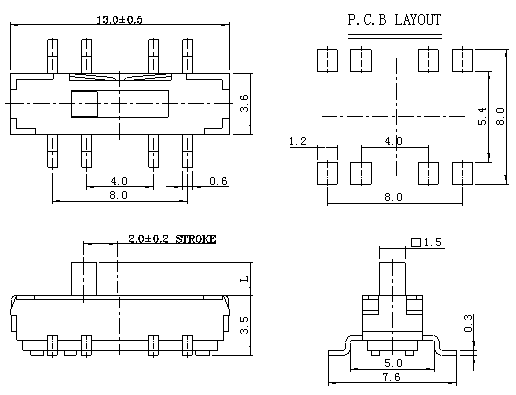

TERMILAL OPTIONS OF SS031B- □M -23 （ mm ）



TERMILAL OPTIONS OF SS031B- □M -22 （ mm ）



TERMILAL OPTIONS OF SS031B- □C -12 （ mm ）



PACKING EXPLANATION ：
  1. 24,000 PCS for one big box(500 PCS for one bag, 8 bags for one small carton,6small cartons for one big box.)
  2. Taping packaging :

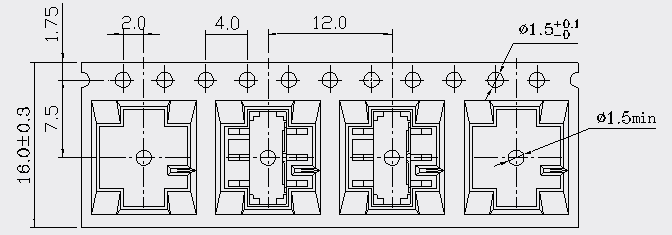

    SS031-01M-22: 1,200 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 1 ）
