S031f Series Switch (Slide Switches)
Home > Products > Slide Switches > S031f Series

SPECIFICATION

Mechanical life:10,000 cycles min
Electrical life:10,000 cycles min
Contact Rating:0.1Amps @50 VDC
Insulation Resistance:>100MΩ DC100V
Withstand Voltage:AC100V 1 minute
Contact Resistance:<100mΩ
Ambient Humidity:<85%RH
Operating Temper:-25℃ to 70℃
Soldering Process:Hand soldering:Use a soldering iron of 30 watts, controlled at 360℃ approximately 3 seconds while applying solder.

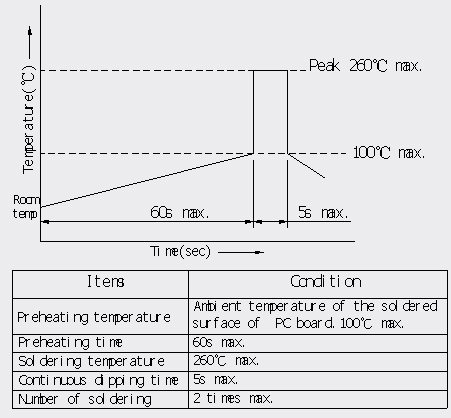

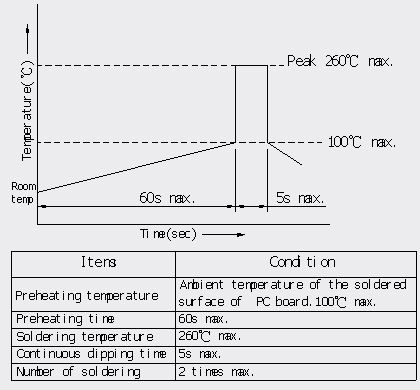

Wave soldering: When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:(Figure 1
Reflow soldering:When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 2

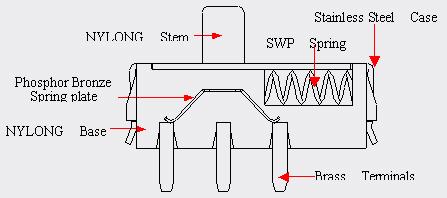

MATERIALS

Case: Stainless Steel;
Base: High Temperature NYLONG (UL94 V-0);
Stem: High Temperature NYLONG (UL94 V-0);
Terminals: Brass;
Spring plate: Phosphor Bronze;
Spring: SWP

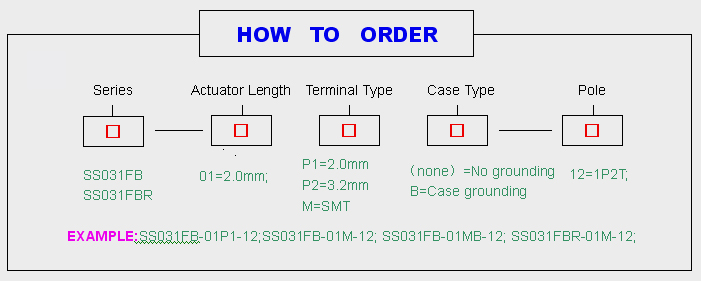

HOW TO ORDER

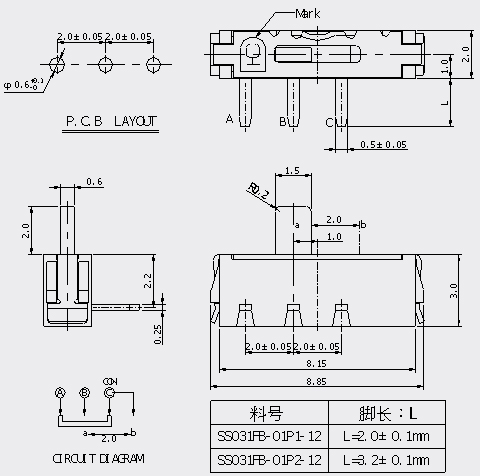

DIMENSION DRAWING of SS031FB-01P*-12 (mm)

SS031FB-01P*-12

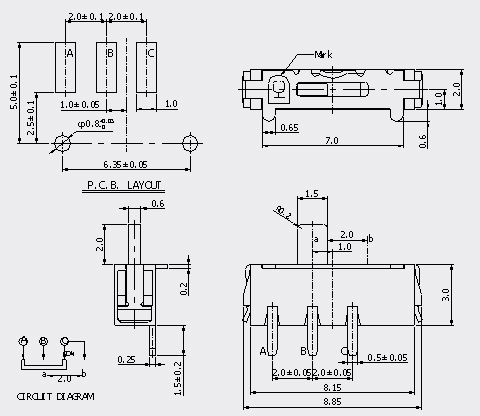

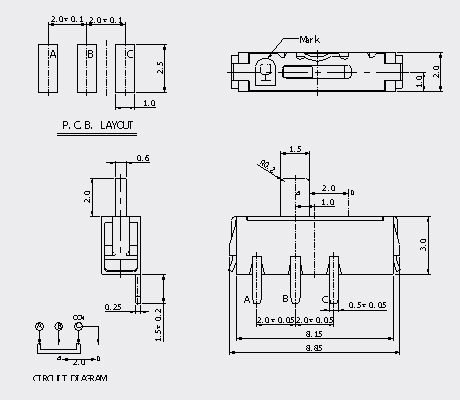

DIMENSION DRAWING of SS031FB-01M-12 (mm)

SS031FB-01M-12

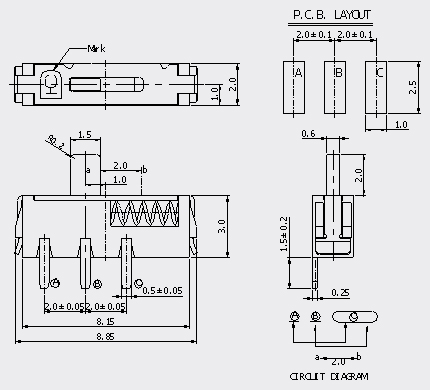

DIMENSION DRAWING of SS031FB-01MB-12 (mm)

SS031FB-01MB-12

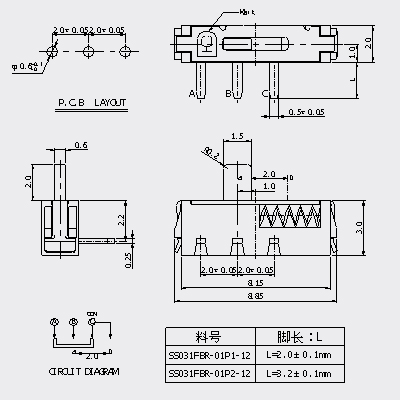

DIMENSION DRAWING of SS031FBR-01P*-12 (mm)

SS031FBR-01P*-12

DIMENSION DRAWING of SS031FBR-01M-12 (mm)

SS031FBR-01M-12
