FEATURES:
- A miniaturized slide switch
- The double sliding contact structures high reliability
|
| SPECIFICATION |
Mechanical life: 10,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @4 VDC
Insulation Resistance: ＞100MΩ DC100V
Withstand Voltage: AC100V 1 minute
Contact Resistance: ＜100mΩ
Ambient Humidity: ＜85%RH
Operating Temper.: -25℃ to 80℃
Operating Force: 200±100gf
Soldering process: Hand Soldering: Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder

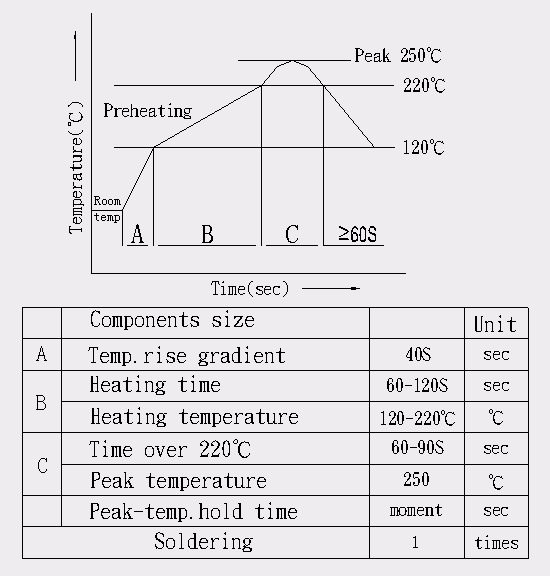

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:
|

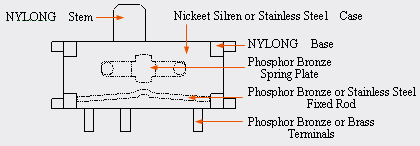

| MATERIALS |
Stem: High Temperature NYLONG (UL94 V-0)
Case: Nickeet Silren or Stainless Steel
Base: High Temperature NYLONG (UL94 V-0)
Terminals: Phosphor Bronze or Brass
Spring plate: Phosphor Bronze
Fixed Rod: Phosphor Bronze or Stainless Steel
|
|

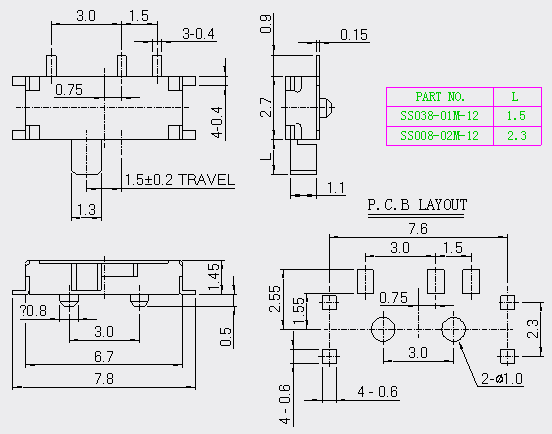

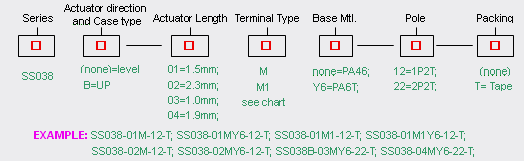

| DIMENSION DRAWING of SS038- □M -12 (mm) |
|

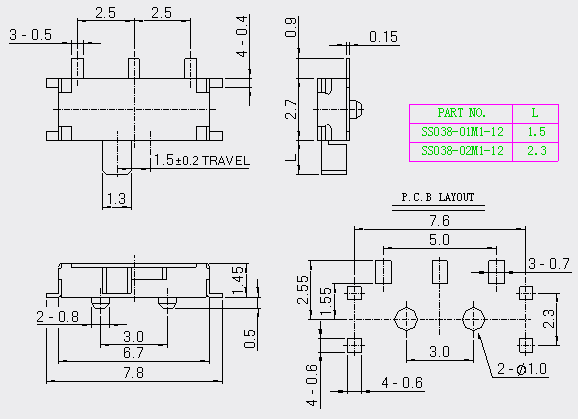

| DIMENSION DRAWING of SS038-□M 1-12 (mm) |
|

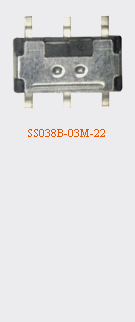

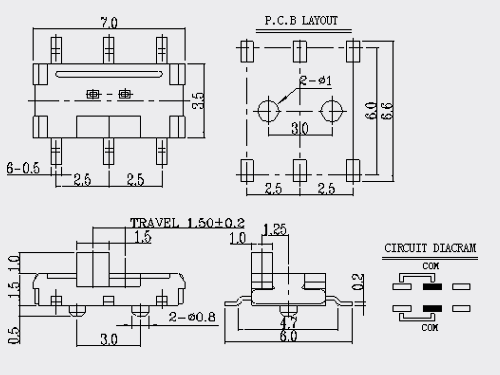

| DIMENSION DRAWING of SS038B-03M-22 (mm) |
|

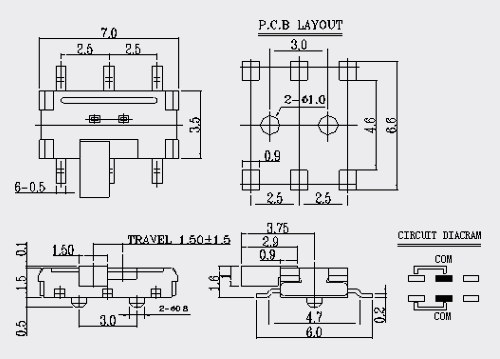

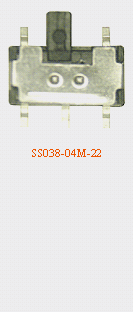

| DIMENSION DRAWING of SS038-04M-22 (mm) |
|

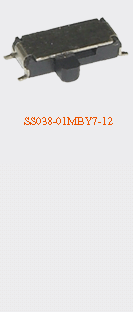

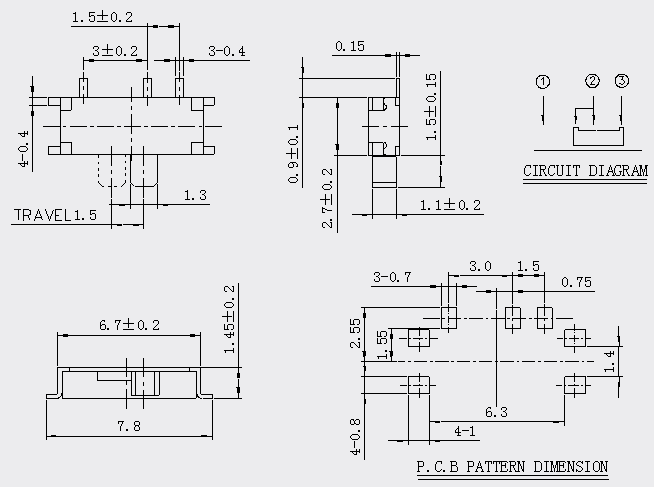

| DIMENSION DRAWING of SS038-01MBY7-12 (mm) |
|
PACKING EXPLANATION : |
- 60,000 PCS for one big box
(1,000 PCS for one bag, 10 bags for one small carton,6small cartons for one big box.)
- Taping packaging :

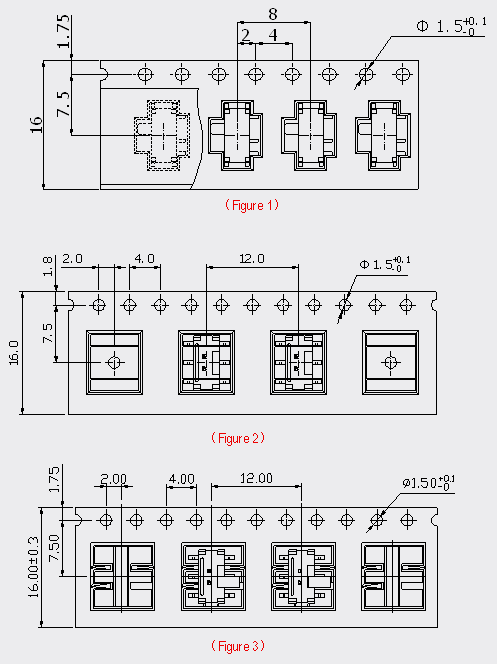

- SS038-01/02M: 3,000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions（Figure 1）
- SS038B-03M-22: 1,500 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions（Figure 2 ）
- SS038-04M-22: 1,500 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions（Figure 3 ）
|
|
|
