BS800 Series Switch (Push Switches)
Home > Products > Push Switches > BS800 Series

FEATURES:

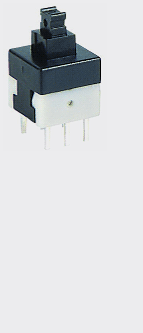

A push switch ( 8.0×8.0×13.5mm )
The double sliding contact structures high reliability

SPECIFICATION
Mechanical life: 100,000 cycles min Electrical life: 10,000 cycles min Contact Rating: 0.1Amps @30 VDC Insulation Resistance: ＞100MΩ DC250V Withstand Voltage: AC250V 1 minute Contact Resistance: ＜50mΩ Ambient Humidity: ＜85%RH Operating Temper.: -25℃ to 65℃ Operating Force: 160±80gf Soldering process: Hand Soldering：Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder

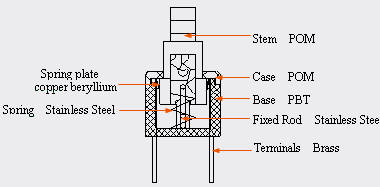

MATERIALS

Case: POM
Base: PBT (UL94 V-0)
Stem: POM
Terminals: Brass(Plating silver)
Spring plate: copper beryllium
Spring: Stainless Steel
Fixed Rod: Stainless Steel

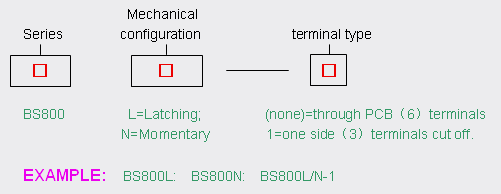

HOW TO ORDER

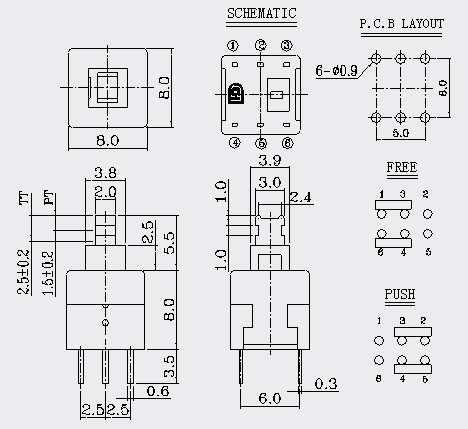

DIMENSION DRAWING of BS800L/N (mm)

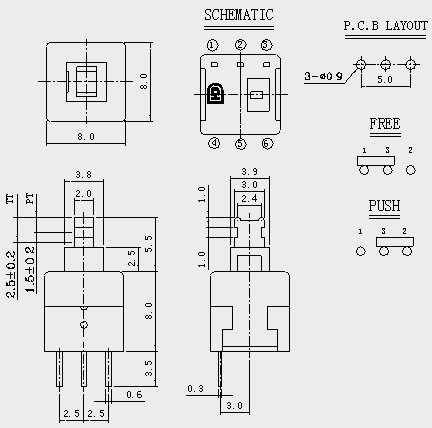

DIMENSION DRAWING of BS800L/N-1 (mm)

PACKING EXPLANATION :
15,000 PCS for one big box(500 PCS for one bag, 5 bags for one small carton,6small cartons for one big box.)
