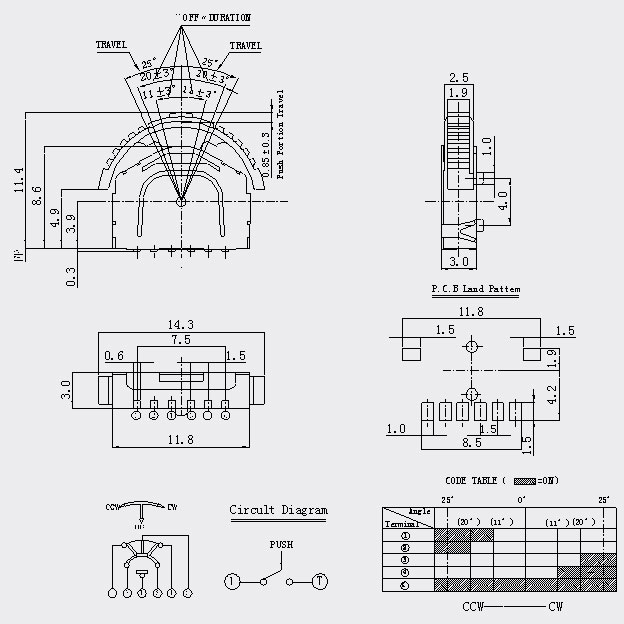

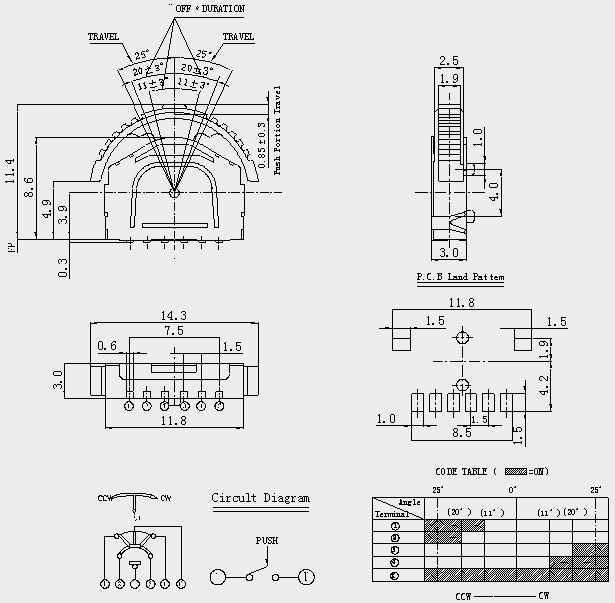

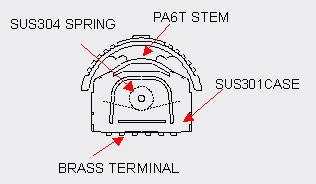

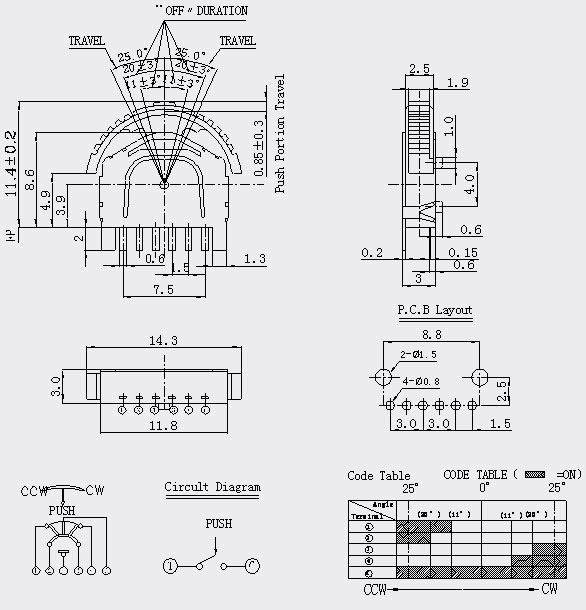

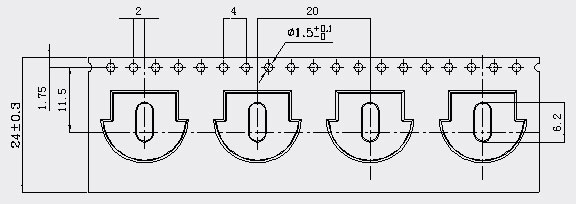

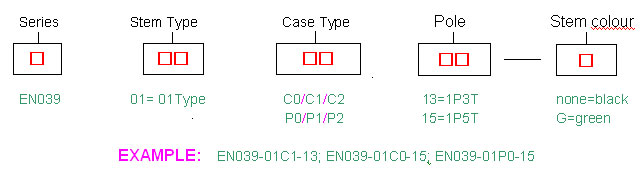

Contact Rating:10 mA @ 5VDC
Electrical life:100,000 cycles
Mechanical life:100,000 cycles min
Insulation Resistance:> 100M Ω DC100V
Withstand Voltage:AC100V 1 minute
Contact Resistance:< 100m Ω
Ambient Temper. : -25 ℃ to 85 ℃
Operating Force:Lever Portion:70 ± 20gf, Push Portion: 250 ± 60gf
Soldering Process:Hand soldering : Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering:When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: ( Figure 1 )
Reflow soldering:When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: ( Figure 2 )
|

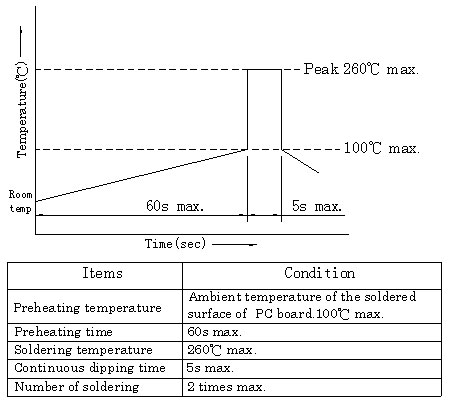

Wave soldering ( Figure 1 ) |
|

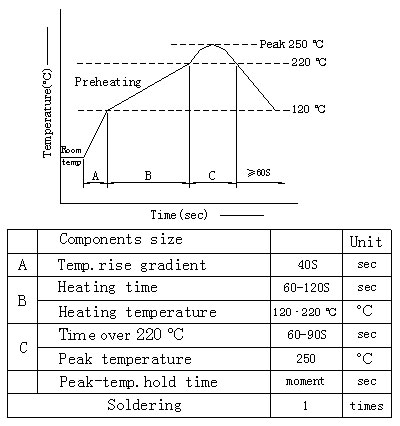

Reflow soldering ( Figure 2 ) |
