EN047 Series SWITCH (TACT Switches)
Home > Products > Push Switches > EN047 Series

SPECIFICATION

Mechanical life:100,000 cycles min
Electrical life:100,000 cycles min
Contact Rating:50 mA @12 VDC ;
Insulation Resistance:> 100M Ω DC100V
Withstand Voltage:AC100V 1 minute
Contact Resistance :< 100m Ω
Ambient Humidity:< 85%RH
Operating Temper. :-20 ℃ to 70 ℃
Operating Force:300 ± 50gf
Soldering process:Hand Soldering : Use a soldering iron of 30 watts , controlled at 380 ℃ approximately 3 seconds while applying solder 。

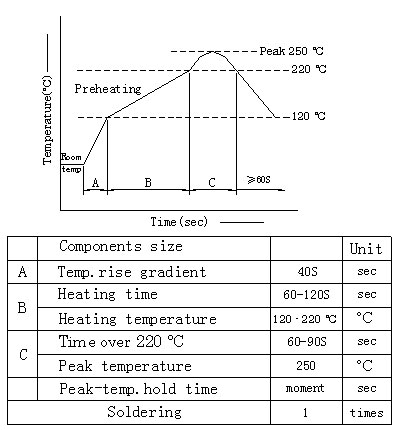

Reflow soldering:When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: ( Figure 1 )



Rellow soldering ( Figure 1 )

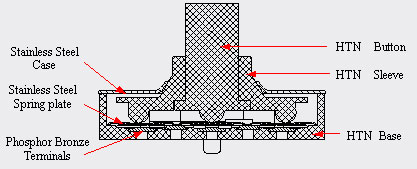

MATERIALS

Button:HTN or High Temperature NYLONG (UL94 V-0)
Sleeve:HTN or High Temperature NYLONG (UL94 V-0)
Base:HTN
Case:Stainless Steel
Spring plate:Stainless Steel
Terminals:Phosphor Bronze

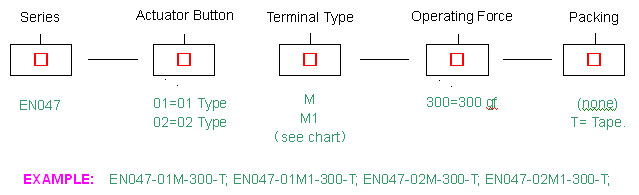

HOW TO ORDER

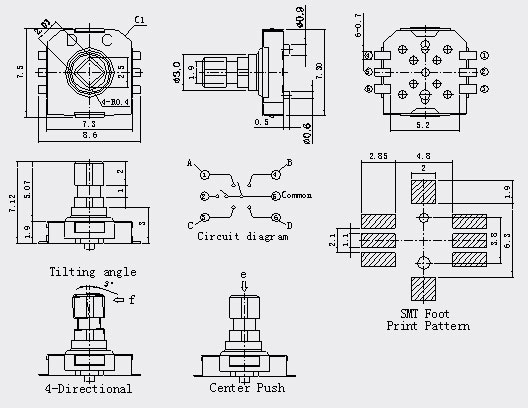

DIMENSION DRAWING OF EN047-01M-300 ( mm )

EN047-01M-300

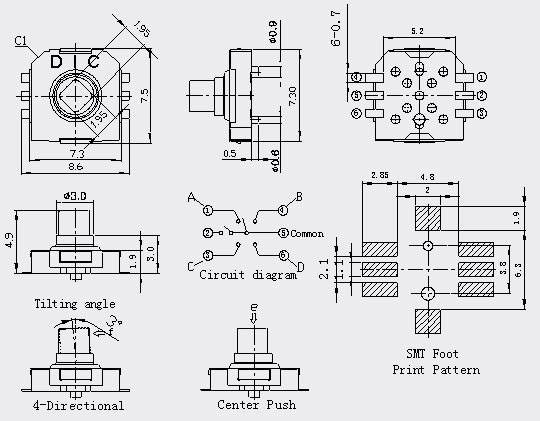

DIMENSION DRAWING OF EN047-01M1-300 ( mm )

EN047-01M1-300

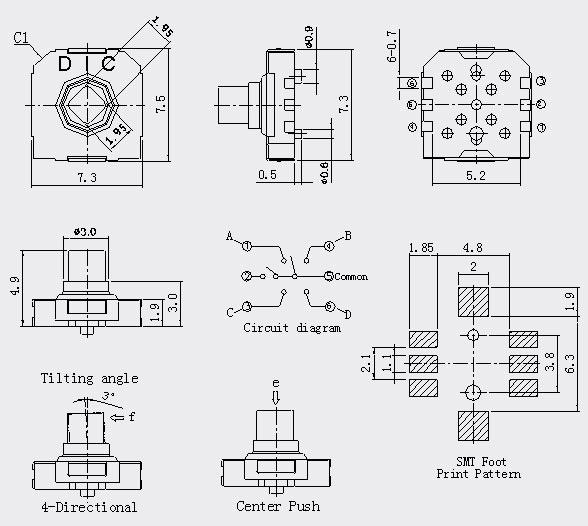

DIMENSION DRAWING OF EN047-02M-300 ( mm )

EN047-02M-300

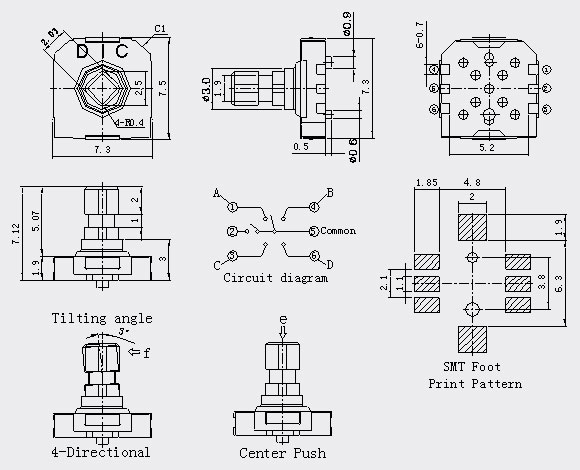

DIMENSION DRAWING OF EN047-02M1-300 ( mm )

EN047-02M1-300

PACKING EXPLANATION :

Taping packaging :

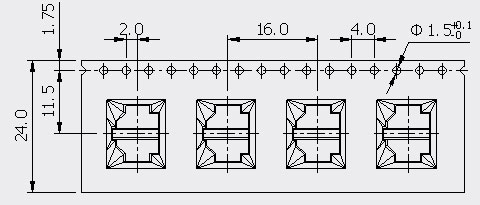

•  EN047 -01M / 01M 1: 700 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions ( Figure 1 )
•  EN047 -02M / 02M 1: 450 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions ( Figure 1 )
