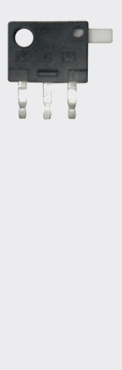

PS023 Series Switch (Push Switches)
Home > Products > Push Switches > PS023 Series

SPECIFICATION
Mechanical life: 50,000 cycles min Electrical life: 10,000 cycles min Contact Rating: 0.1Amps @30 VDC Insulation Resistance: ＞100MΩ DC125V Withstand Voltage: AC125V 1 minute Contact Resistance: ＜100mΩ Ambient Humidity: ＜85%RH Operating Temper.：-10℃ to 70℃ Operating Force: 50±20gf Soldering process: Hand Soldering：Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder

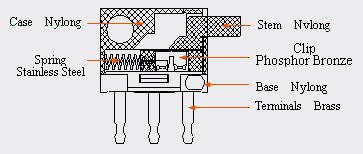

MATERIALS

Case: High Temperature NYLONG (UL94 V-0)
Base: High Temperature NYLONG (UL94 V-0)
Stem: High Temperature NYLONG (UL94 V-0)
Terminals: Brass(Plating silver)
Clip: Phosphor Bronze
Spring: Stainless Steel

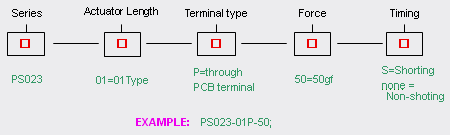

HOW TO ORDER

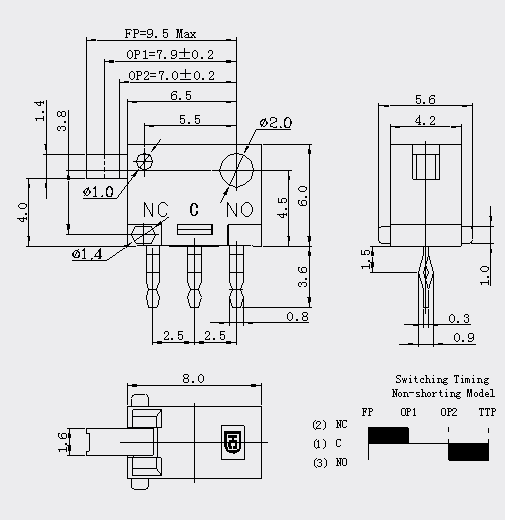

DIMENSION DRAWING of PS023-01P-50 (mm)

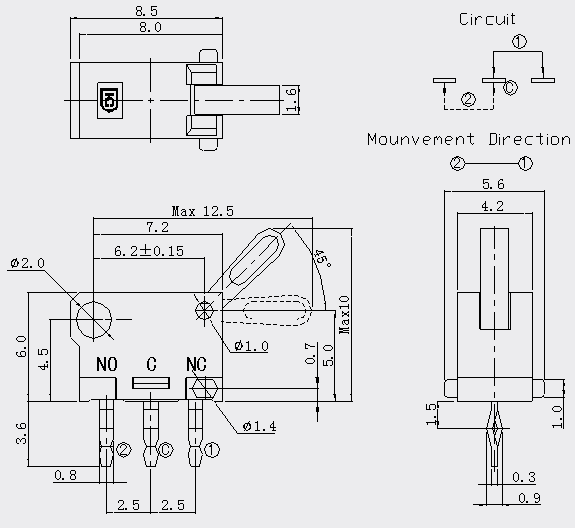

DIMENSION DRAWING of PS023-02P-45 (mm)

PACKING EXPLANATION :
24,000 PCS for one big box(1000 PCS for one bag, 4 bags for one small carton,6small cartons for one big box.)
