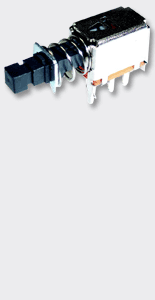

FEATURES:
- Small dimensions
- Good feeling
|
| SPECIFICATION |
Mechanical life: 10,000 cycles min；
Electrical life: 10,000 cycles min
Contact Rating: 30 VDC 2A/1A/0.3A
Insulation Resistance: ＞100MΩ DC250V；
Withstand Voltage: AC250V 1 minute；
Contact Resistance: ＜50mΩ；
Ambient Humidity: ＜85%RH ;
Operating Temper.: -25℃ to 65℃；
Operating Force: 250±100 gf E TYPE） ; 300±100 gf (A TYPE， B TYPE，C TYPE，D TYPE）;
Soldering process: Hand Soldering: Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder
Wave soldering: When applying wave soldering, the plastic using PA6T. the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Reflow & Non-washable Type)

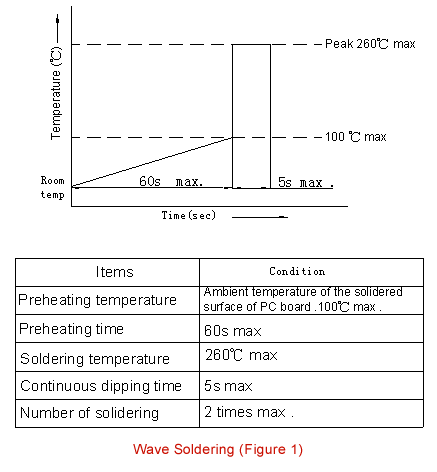

Temperature Profile（Figure 1）:
|

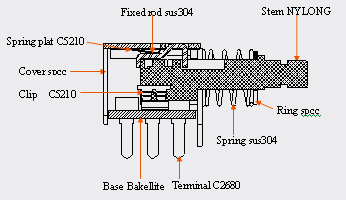

| MATERIALS |
 |
Stem: High Temperature NYLONG (UL94 V-0)
Cover: SPCC (Plating Nickel)
Fixed Rod: SUS304
Spring plate: C5210
Ring: SPCC (Plating Nickel)
Spring: sus304
Terminal: C2680
Base: Bakelite
Clip: C5210 |
|

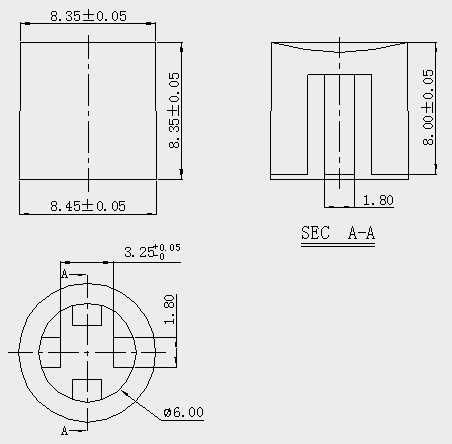

| TERMINAL AND COVER OPTIONS： |

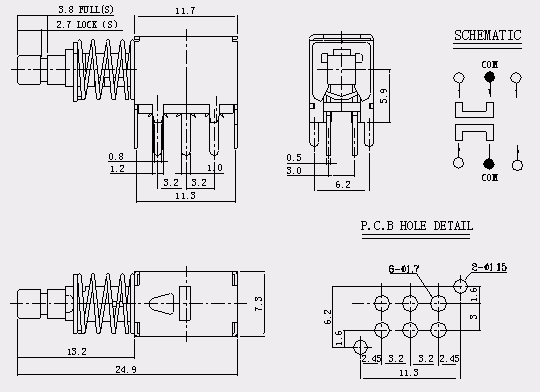

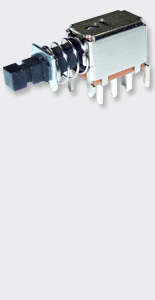

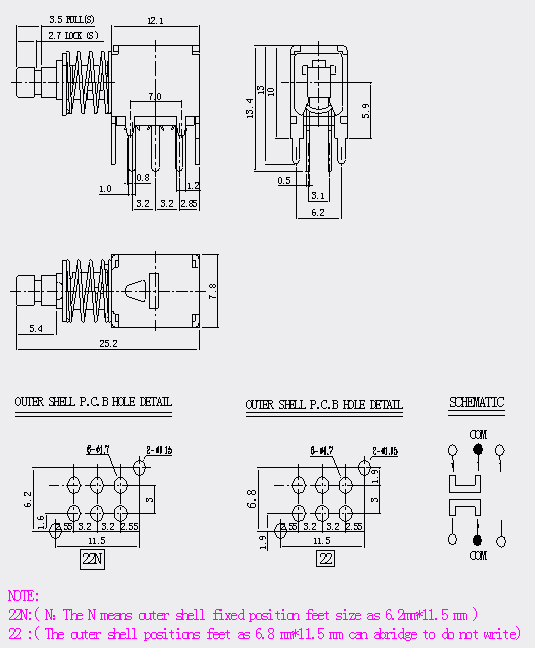

 PS908A TYPE
|
PS908B TYPE
|

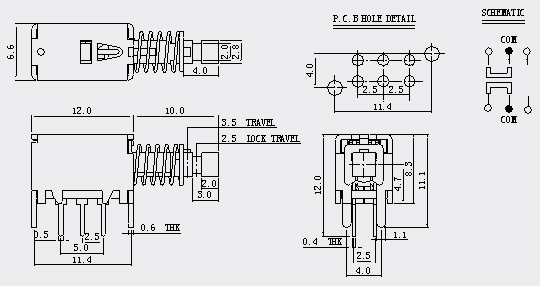

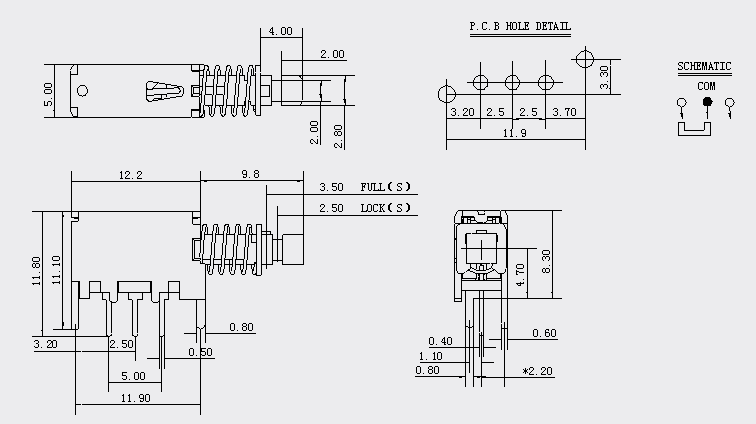

PS908C TYPE
|
| PS908D TYPE |

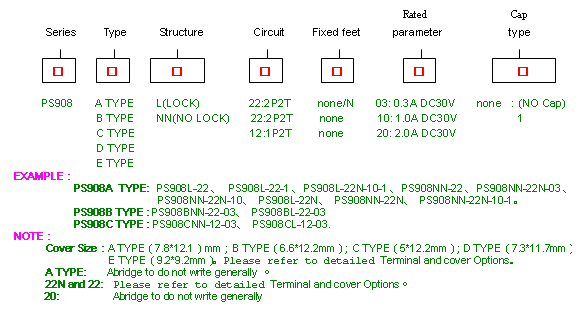

PS908 SWITCH
|
PACKING EXPLANATION : |
PS908A: |
10,000PCS for one big box (200PCS for one small plastics box, 4 small
plastics box for one bag, 50 small plastics box for one big box.) |
PS908B: |
13,500PCS for one big box (270PCS for one small plastics box, 4 small
plastics box for one bag, 50 small plastics box for one big box.) |
PS908C: |
18,000PCS for one big box (360PCS for one small plastics box, 4 small
plastics box for one bag, 50 small plastics box for one big box.) |
|
|
|
