Mechanical life: 30,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: ＞100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: ＜100mΩ
Ambient Humidity: ＜85%RH
Operating Temper.：-20℃ to 70℃
Operating Force: 2 Pole:230±50gf; 4 Pole:280±50gf; 6 Pole:380±50gf
Soldering process: Hand Soldering：Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder

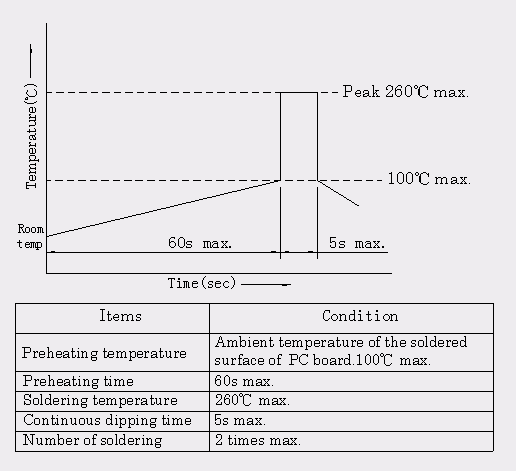

Wave soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 240℃max. On dition for soldering (Reflow & Non-washable Type) Temperature Profile:

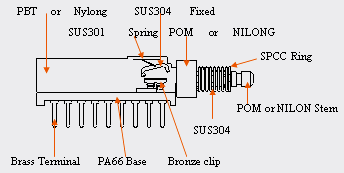

Case: High Temperature PBT or NYLONG (UL94 V-0) Base: High Temperature NILONG (UL94 V-0) Stem: High Temperature NYLONG (UL94 V-0) or POM Sleeve: High Temperature NYLONG (UL94 V-0) or POM Terminals: Brass(Plating silver) Ring:SPCC Spring plate: SUS301 Clip: C5210 Spring: SUS304 Fixed Rod: SUS304

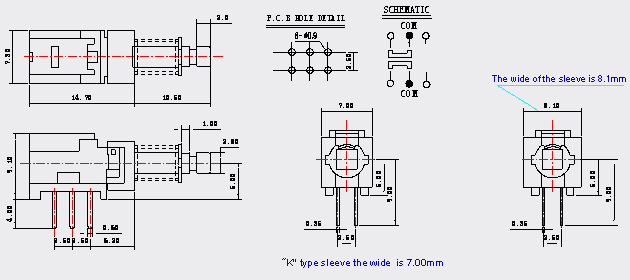

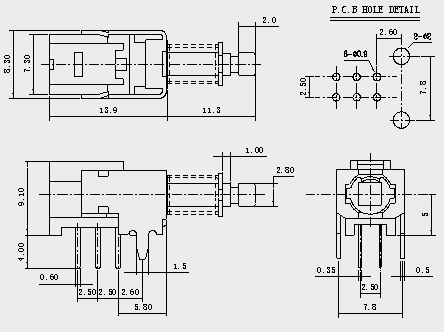

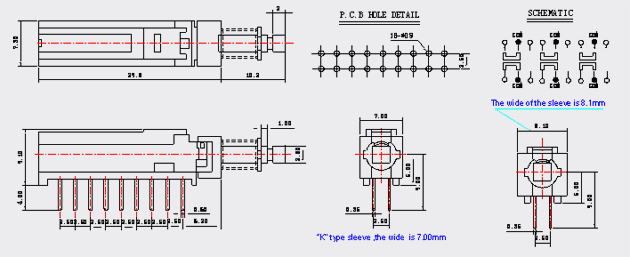

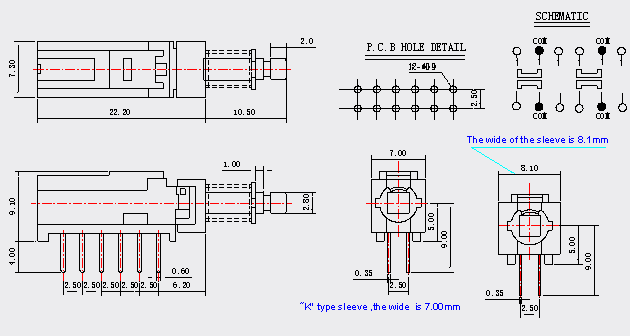

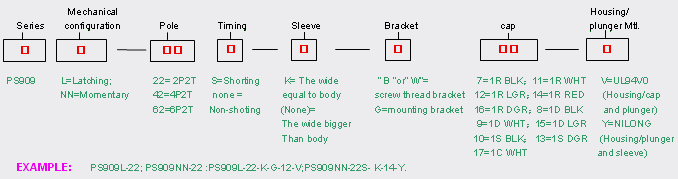

PS-909L-22-B

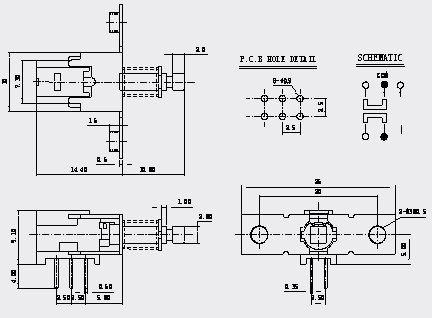

PS909L-22-G

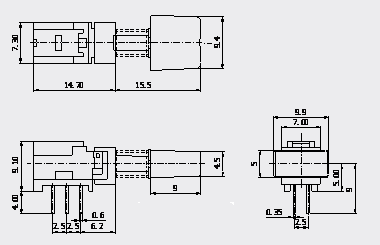

1C CAP

NO. Title Color Figure 1CBLK BLK 17 1CWHT WHT 1CRED RED 1CLGR LGR

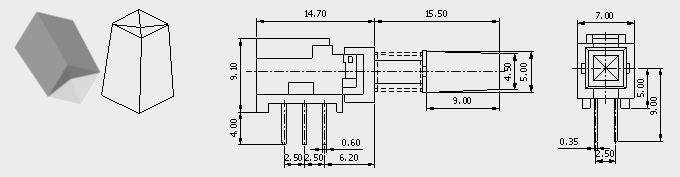

1D CAP

NO. Title Color Figure 8 1DBLK BLK Chapter 9 1DWHT WHT 1DRED RED 15 1DLGR LGR   1DDGR DGR   1DBLU BLU

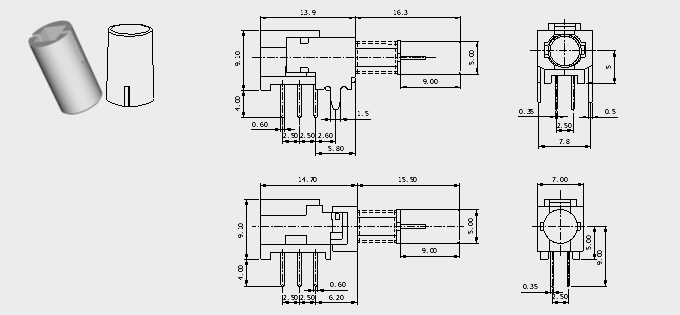

1R CAP

NO. Title Color Figure 7 1RBLK BLK Round 11 1RWHT WHT 14 1RRED RED 12 1RLGR LGR 16 1RDGR DGR

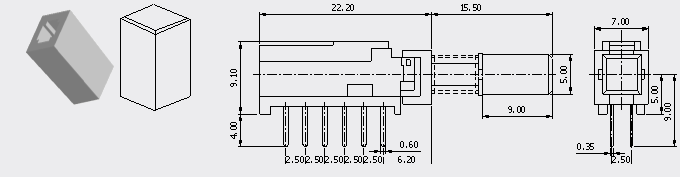

1S CAP

NO. Title Color Figure 10 1SBLK BLK Squareness 1SWHT WHT 1SRED RED 1SLGR LGR 13 1SDGR DGR   1SBLU BLU
