Mechanical life ： 200,000 cycles min
Electrical life ： 200,000 cycles min
Contact Rating ： 20 mA @15VDC
Insulation Resistance ：100M Ω DC500V
Withstand Voltage ： AC250V 1 minute
Contact Resistance ：100m Ω
Ambient Humidity: 45 ～ 85%RH ；
Operating Temper. ： -20 ℃ to 70 ℃
Operating Force ： 320 ± 100gf (middle) ； 200 ± 50gf (around)
Soldering process : Hand Soldering ： Use a soldering iron of 30 watts ， controlled at 380 ℃ approximately 3 seconds while applying solder

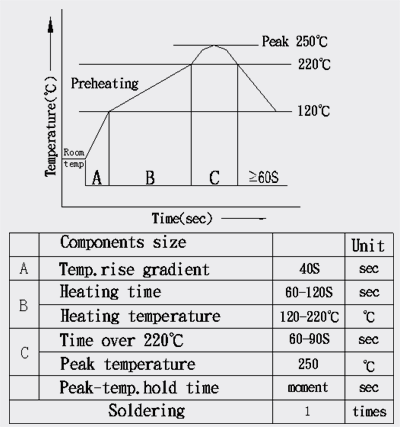

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 1 ）

Wave Soldering ( Figure 1 )
