Contact Rating: 50 mA @ 12VDC;
Electrical life: 100,000 cycles
Mechanical life ： 100,000 cycles min ；
Position Travel ： 0.35 ± 0.1 mm
Insulation Resistance ：＞ 100M Ω DC100V ；
Withstand Voltage ： AC250V 1 minute ；
Contact Resistance ：＜ 100m Ω；
Ambient Temper. ： -25 ℃ to 70 ℃；
Operating Force ： 180 ± 30 gf ； 250 ± 50 gf
Soldering Process : Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 2 ）

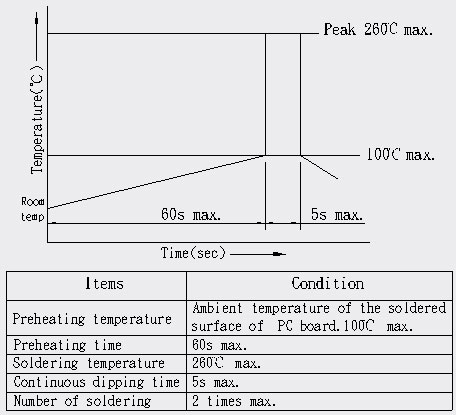

Wave soldering (Figure 1)

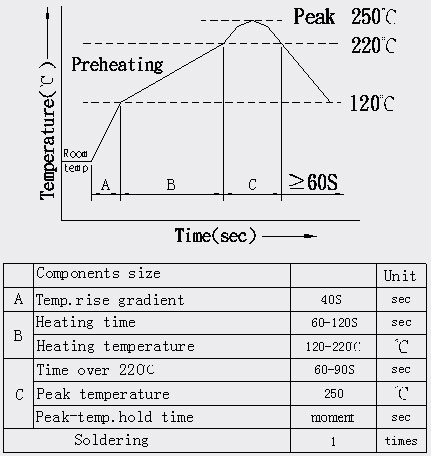

Rellow soldering (Figure 2)
