Contact Rating: 50 mA @ 12VDC;
Electrical life: 1,000,000 cycles
Mechanical life: 1,000,000 cycles min；
Position Travel: 0.25+0.2/-0.1
Insulation Resistance: ＞100MΩ DC100V；
Withstand Voltage: AC250V 1 minute；
Contact Resistance: ＜100mΩ；
Ambient Temper.: -25℃ to 70℃；
Operating Force: 70±15 gf；100±30 gf；160±30 gf；
Soldering Process: Hand soldering：Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1）
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:（Figure 2）

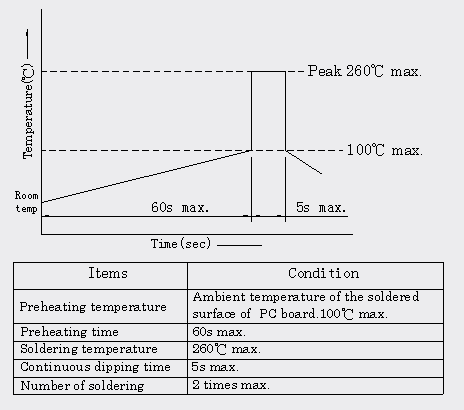

Wave Soldering ( Figure 1)


Rellow Soldering ( Figure 2 )
