Contact Rating:50mA @ 30VDC
Electrical life:100,000 cycles
Mechanical life:100,000 cycles min
Insulation Resistance:> 100M Ω DC250V
Withstand Voltage:AC600V 1 minute
Contact Resistance:< 100m Ω
Ambient Temper.: -25 ℃ to 70 ℃
Operating Force:see chart

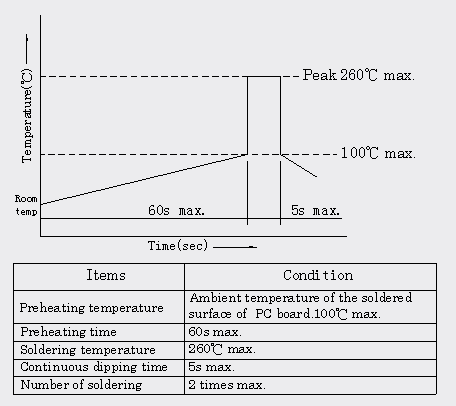

Soldering Process:Hand soldering, Use a soldering iron of 30 watts, controlled at 380 ℃ approximately 3 seconds while applying solder. Wave soldering:When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:

|
