FEATURES:
- SMD TACT switch
- A miniaturized TACT switch;
|

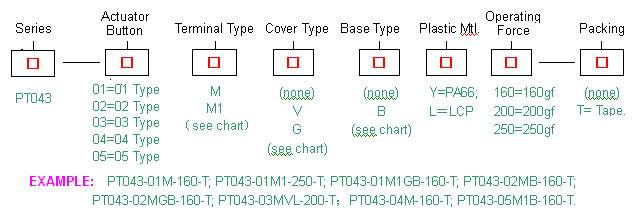

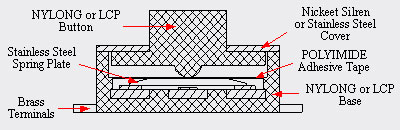

| MATERIALS |
Button：High Temperature NYLONG (UL94 V-0) or LCP
Cover：Nickeet Silren or Stainless Steel
Base：High Temperature NYLONG (UL94 V-0) or LCP
Adhesive Tape：POLYIMIDE
Terminals：Brass
Spring plate：Stainless Steel
|
| SPECIFICATIONS |
Mechanical life：100,000 cycles min
Electrical life：100,000 cycles min
Contact Rating： 50mAmps @12 VDC
Insulation Resistance：＞ 100M Ω DC250V
Withstand Voltage：AC250V 1 minute
Contact Resistance：＜ 100m Ω
Ambient Humidity：＜ 85%RH
Operating Temper.： -25 ℃ to 70 ℃
Soldering Process：Hand soldering ： Use a soldering iron of 30 watts, controlled at 380 ℃ approximately 3 seconds while applying solder.

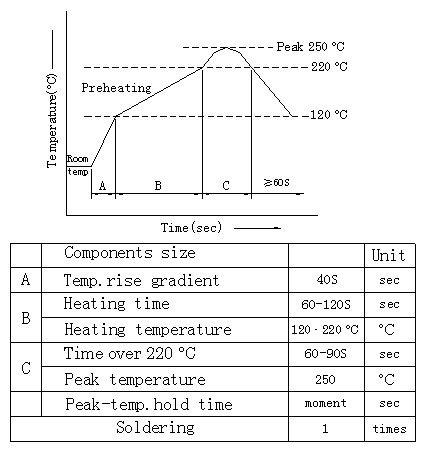

Reflow soldering： When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 1 ）
Rellow soldering （ Figure 1 ）
|

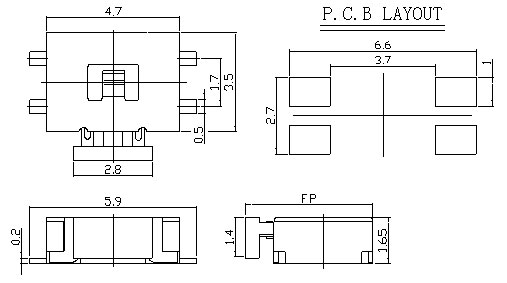

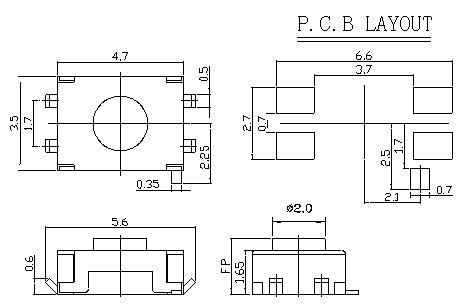

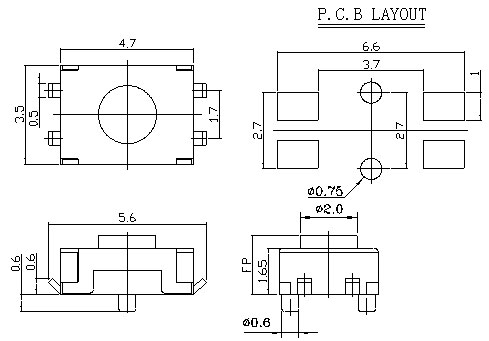

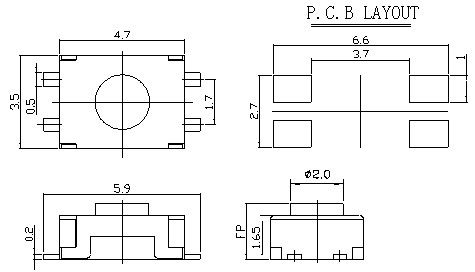

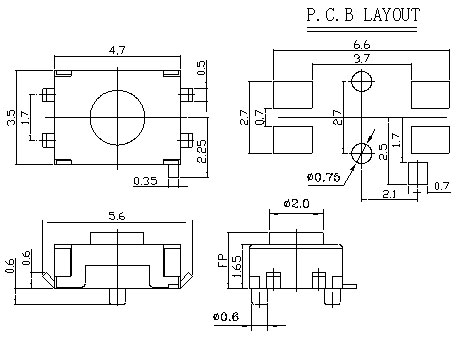

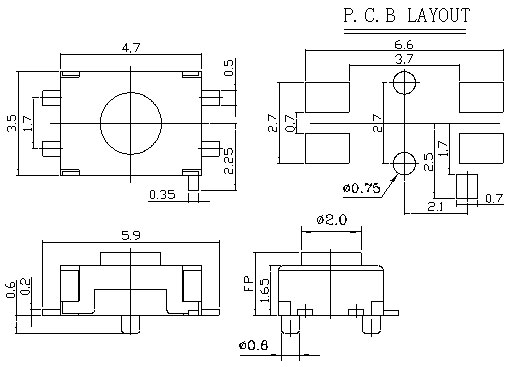

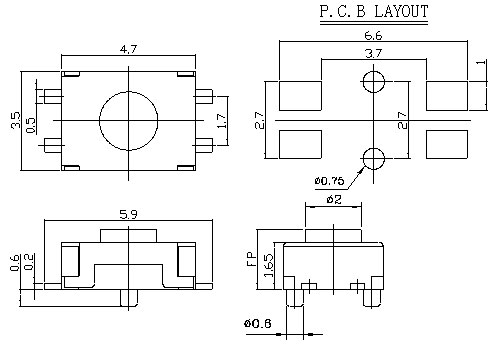

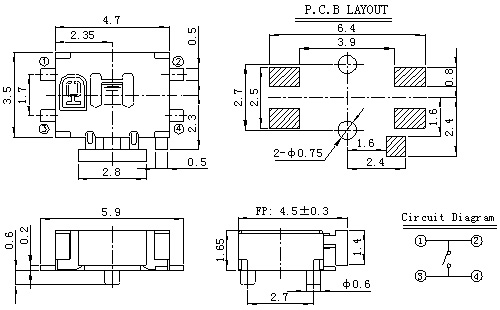

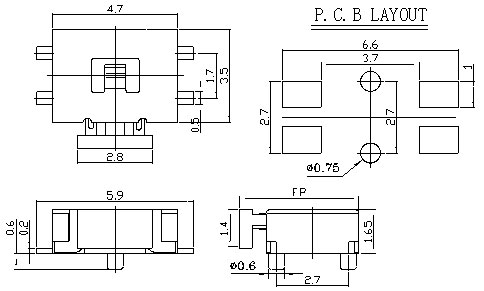

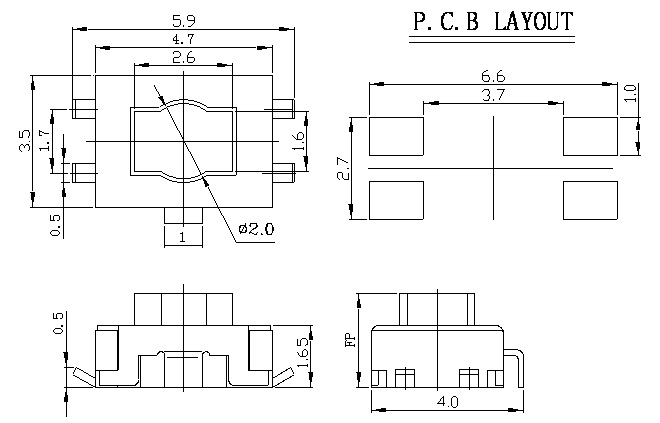

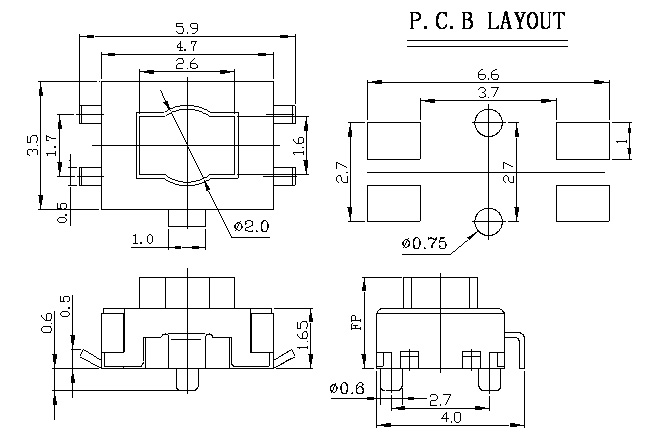

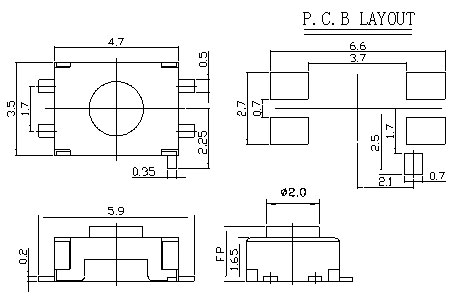

| DIMENSION DRAWING OF PT043- □ M-160/250-T ( mm ) |
|
|
DIMENSION DRAWING OF PT043- □ MB-160/250-T ( mm ) |
|
|
DIMENSION DRAWING OF PT043- □M1-160/250-T (mm) |
|
|
DIMENSION DRAWING OF PT043- □ MG-160/250-T (mm) |
|
|
DIMENSION DRAWING OF PT043- □ MGB-160/250-T (mm) |
|
|
DIMENSION DRAWING OF PT043- □ M1G-160/250-T (mm) |
|
|
DIMENSION DRAWING OF PT043- □M1GB-160/250-T ( mm) |
|
|
DIMENSION DRAWING OF PT043-03MVL-160/200-T (mm) |
|
|
DIMENSION DRAWING OF PT043-03MVBL-160/200-T ( mm) |
|
|
DIMENSION DRAWING OF PT043-05M1-160/250-T (mm) |
|
|
DIMENSION DRAWING OF PT043-05M1B-160/250-T ( mm ) |
|
|
DIMENSION DRAWING OF PT043-03MGY7-180-T ( mm ) |
 |
PT043-03MGY7-180-T |
|
 |
|
PACKING EXPLANATION : |
- 60,000 PCS for one big box(1,000 PCS for one bag, 10 bags for one small carton,6small cartons for one big box.)
- Taping packaging :

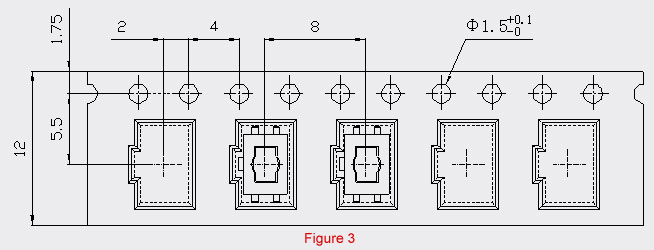

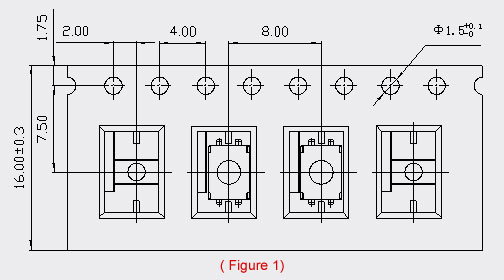

• PT043-01/02M: 2,000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 1 ）

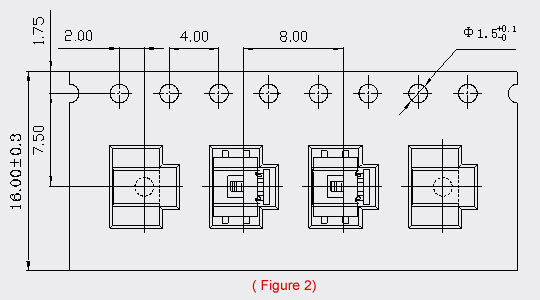

• PT043-03M: 2,000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 2 ）
• PT043-05M: 3,000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 3 ）

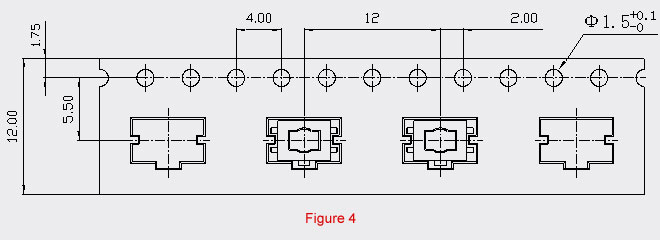

• PT043-05M-T1: 2,000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 4 ）
|
|
|
