Contact Rating:50 mA @ 12VDC;
Electrical life: 50,000 cycles
Mechaanical life:50,000 cycles min;
Position Travel:0.2±0.1
Insulation Resistance:>100MΩ DC250V;
Withstand Voltage:AC250V 1 minute;
Contact Resistance:<100mΩ;
Ambient Temper.:-20℃ to 70℃;
Operating Force:160±50gf;
Soldering Process:Hand soldering:Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.

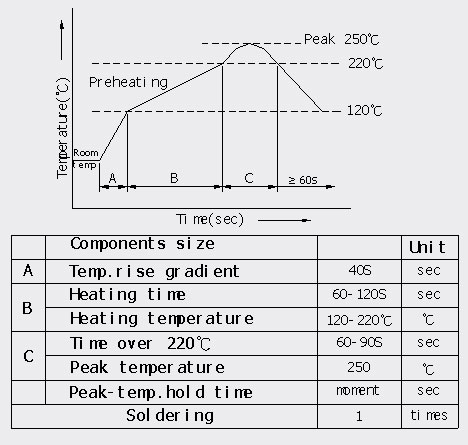

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 1)
Rellow soldering(Figure 1)
|
