Contact Rating： 50 mA@12VDC;
Electrical life： 1,000,000 cycles
Mechanical life： 1,000,000 cycles min ；
Insulation Resistance： ＞ 100M Ω DC250V ；
Withstand Voltage： AC250V 1 minute ；
Contact Resistance： ＜ 100m Ω；
Ambient Temper.： -25 ℃ to 70 ℃；
Operating Force： 70 ± 20 gf ； 100 ± 30 gf ； 160 ± 30 gf ；
Soldering Process： Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering： When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile： （ Figure 1 ）
Reflow soldering： When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 2 ）

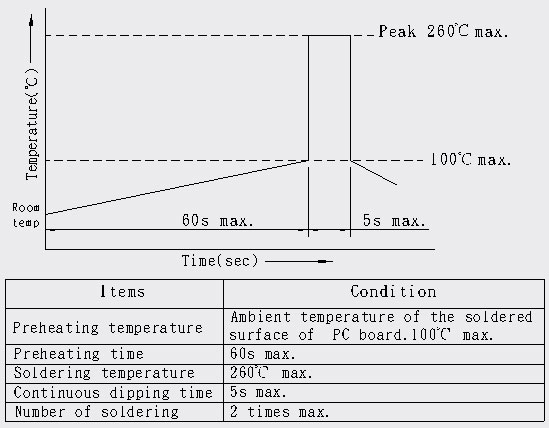

Wave soldering （ Figure 1 ）

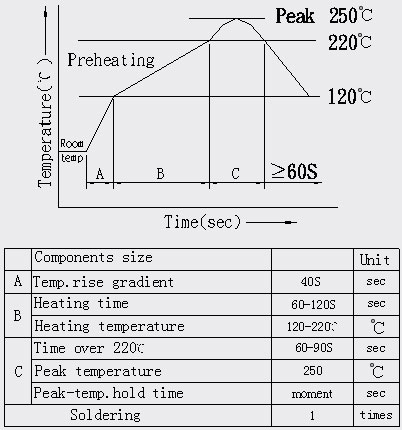

Rellow soldering （ Figure 2 ）
