Contact Rating: 50 mA @ 12VDC
Electrical life: 1,000,000 cycles
Mechanical life: 1,000,000 cycles min
Insulation Resistance: ＞100MΩ DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: ＜100mΩ
Ambient Temper.: -25℃ to 70℃

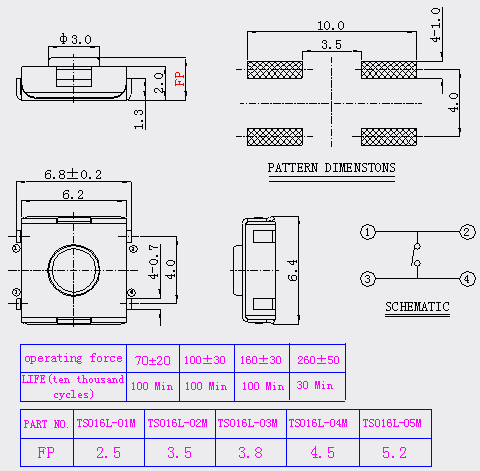

Operating Force: 70±20 gf；100±30 gf；160±30 gf
If the operating force is 260±50 gf，the life ：300，000 cycles
Soldering Process: Hand soldering：Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1）

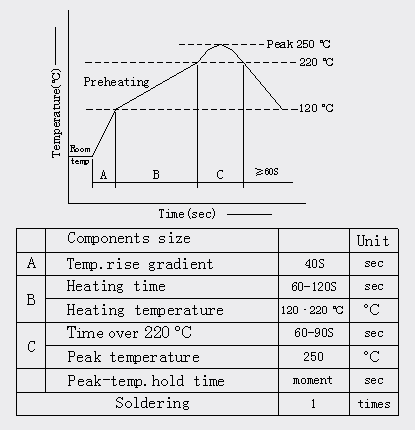

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:（Figure 2）

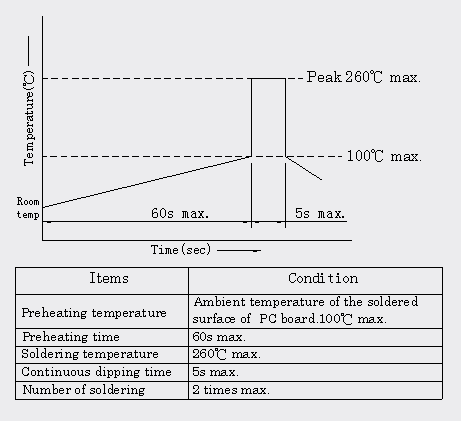

Wave Soldering (Figure 1)

Rellow Soldering (Figure 2)
