TS022 Series Switch (Tact Switch)
Home > Products > Tact Switches > TS022 Series

FEATURES:

Small dimensions
Mechanical life：min. 1 x 10⁵cycles
Good feeling

SPECIFICATION
Contact Rating: 50 mA @ 12VDC Electrical life: 100,000 cycles Mechanical life: 100,000 cycles min Insulation Resistance: ＞100MΩ DC250V Withstand Voltage: AC250V 1 minute Contact Resistance: ＜100mΩ Ambient Temper.: -25℃ to 70℃ Operating Force: 180±50 gf；250±60 gf Soldering Process:Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder. Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1） Reflow soldering:When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type)Temperature Profile:（Figure 2）

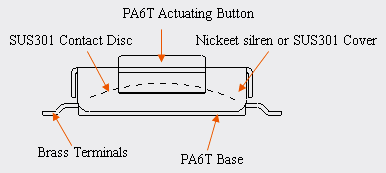

MATERIALS

Switch cover: Nickeet silren or sus301
Switch Base: PA6T (UL94 V-0)；
Color: Black
Actuating Button: PA6T(UL94 V-0)；
Color: Black
Terminals: C5210(Plating silver)
Contact Disc: SUS301

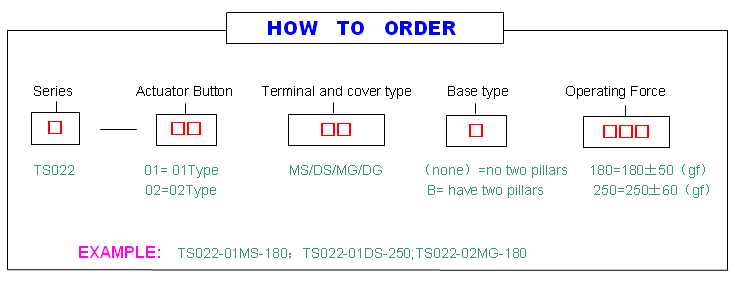

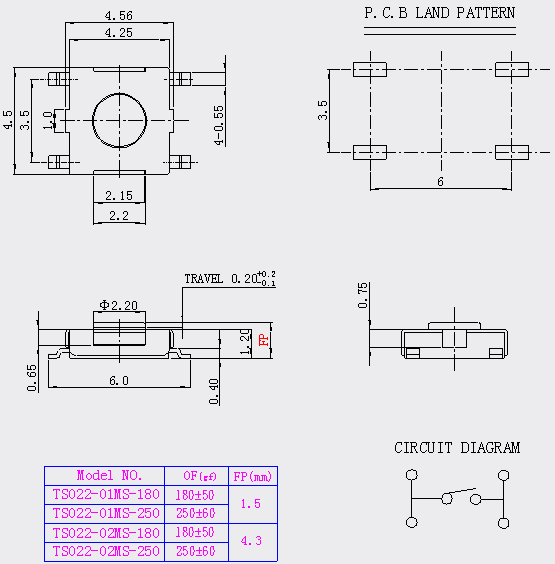

HOW TO ORDER

TERMINAL AND COVER OPTIONS

TS022-01MS

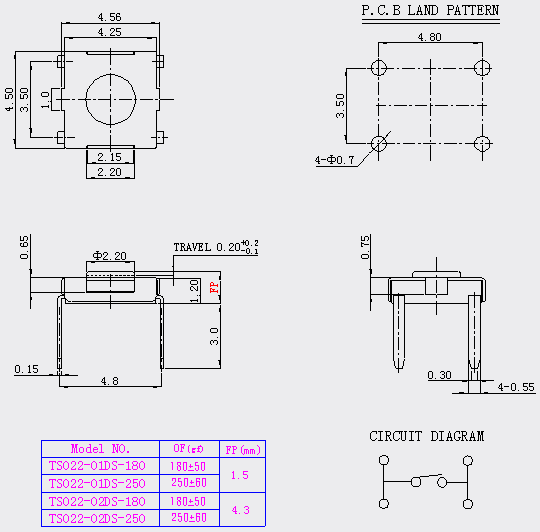

TS022-01DS

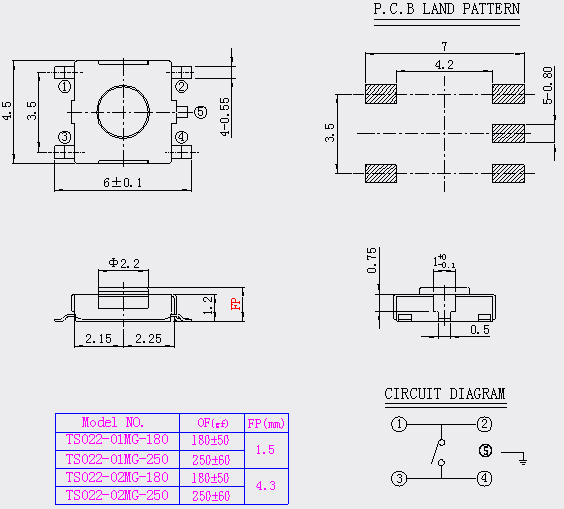

TS022-01MG

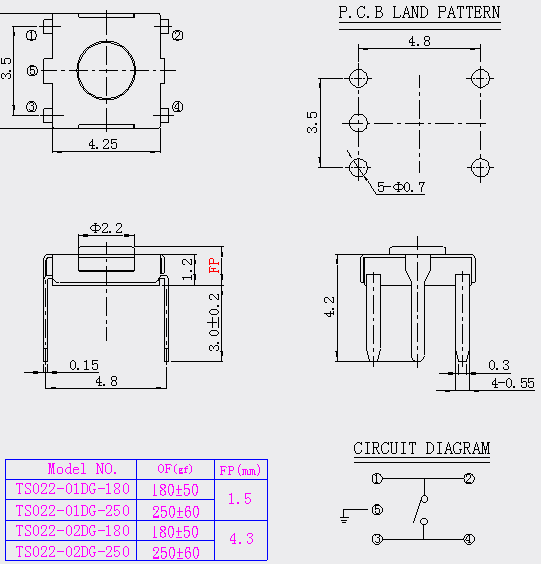

TS022-01DG

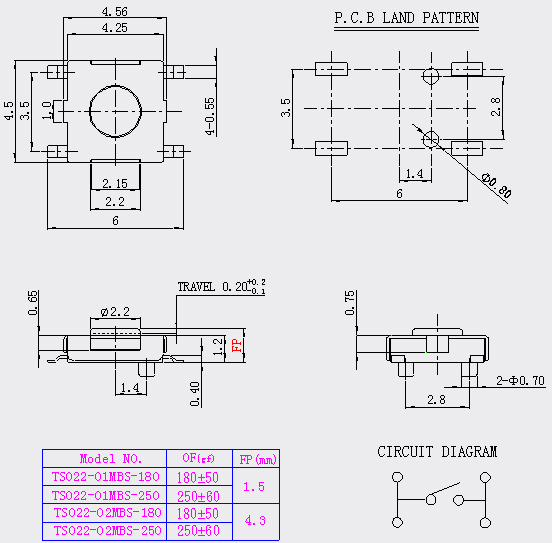

TS022-01MBS

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)

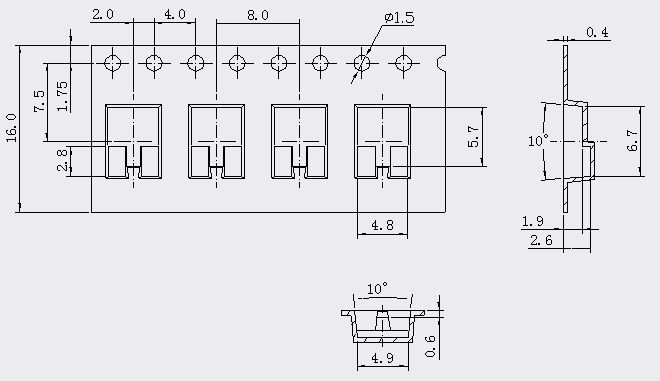

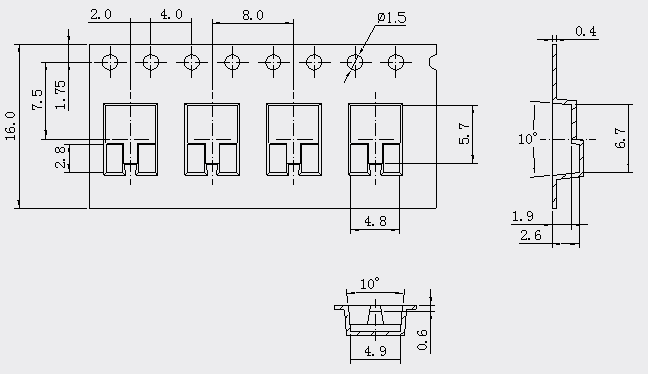

Taping packaging : 3000 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions (Figure 1) :
Taping packaging : 1500 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions (Figure 2) :

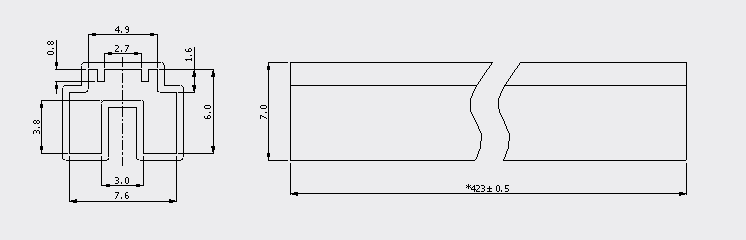

Canal packaging : 80 switches shall be packed in a strip;Ten(10) strips at maximum shall be packed in a bundle. Canal form and dimensions (Figure 3) :

Taping Packaging

(Figure 1)

(Figure 2)

Canal packaging

(Figure 3)
