Switch cover：SPCC or SUS301
Switch Base：PA6T (UL94 V-0)
Color：Black
Actuating Button：PA6T(UL94 V-0)
Color：Black
Terminals：Brass(Plating silver)
Contact Disc：SUS301

Contact Rating：50 mA @ 12VDC
Electrical life：100,000 cycles
Mechanical life：100,000 cycles min
Insulation Resistance：＞ 100M Ω DC100V
Withstand Voltage：AC250V 1 minute
Contact Resistance：＜ 100m Ω
Ambient Temper. ：-25 ℃ to 70 ℃

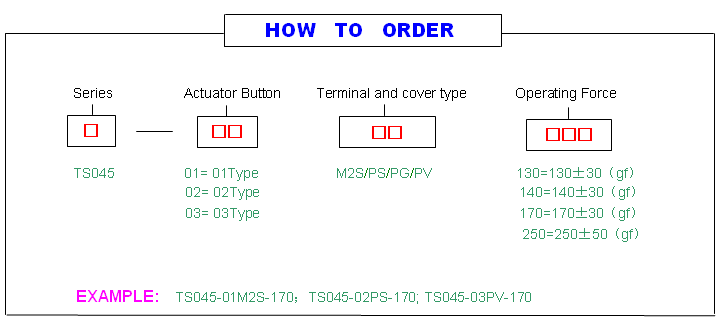

Operating Force：130 ± 30 gf ； 140 ± 30 gf ； 170 ± 30 gf ； 250 ± 50 gf
Soldering Process：Hand soldering ： Use a soldering iron of 30 watts, controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering：When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Reflow soldering：When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 2 ）

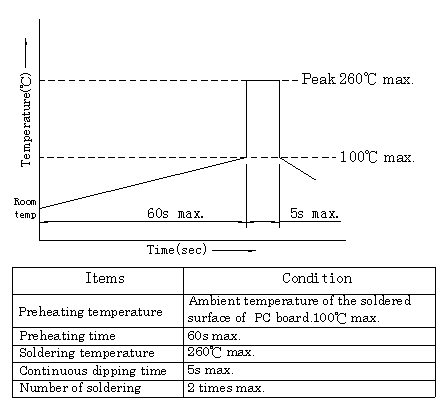

Wave soldering （ Figure 1 ）

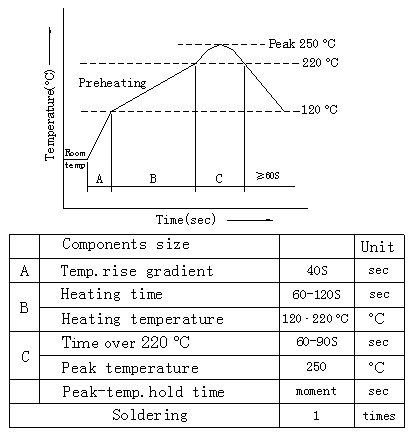

Reflow soldering （ Figure 2 ）
