Contact Rating: 50 mA @ 12VDC;
Electrical life: 300,000
Mechanical life: 300,000；
Insulation Resistance: ＞100MΩ DC100V；
Withstand Voltage: AC250V 1 minute；
Contact Resistance: ＜100mΩ；
Ambient Temper.: -25℃ to 70℃；
Operating Force: 130±30 gf；160±50 gf；280±50 gf.
Soldering Process: Hand soldering：Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.

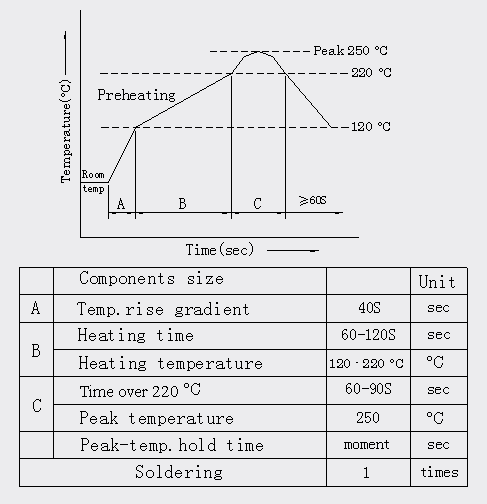

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:（Figure 1）
