Contact Rating: 50 mA @ 12VDC

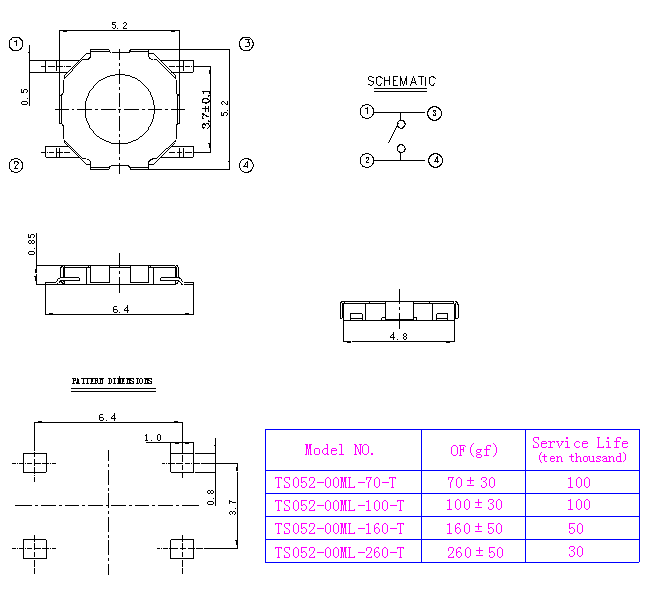

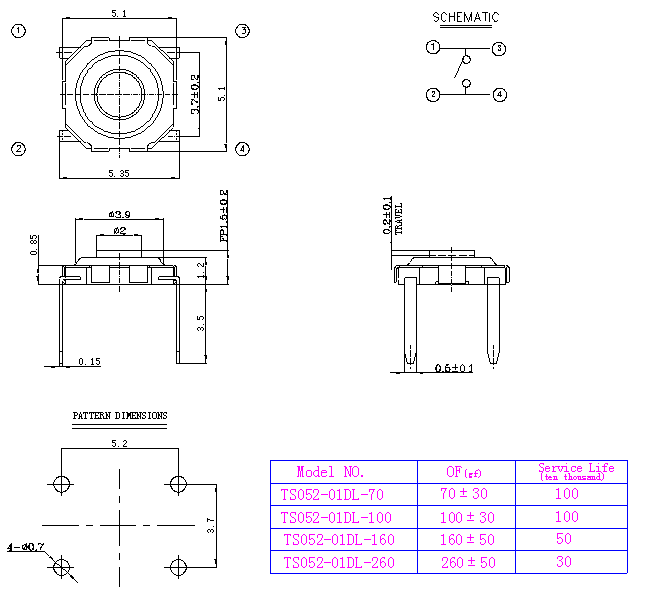

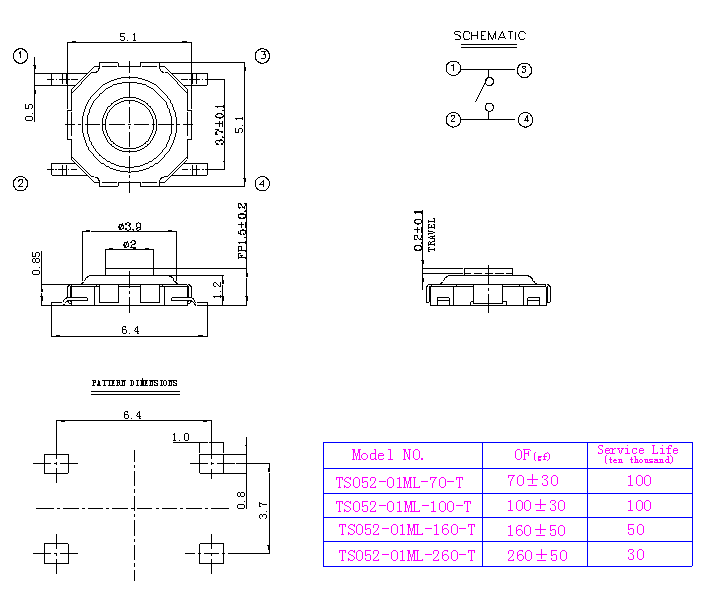

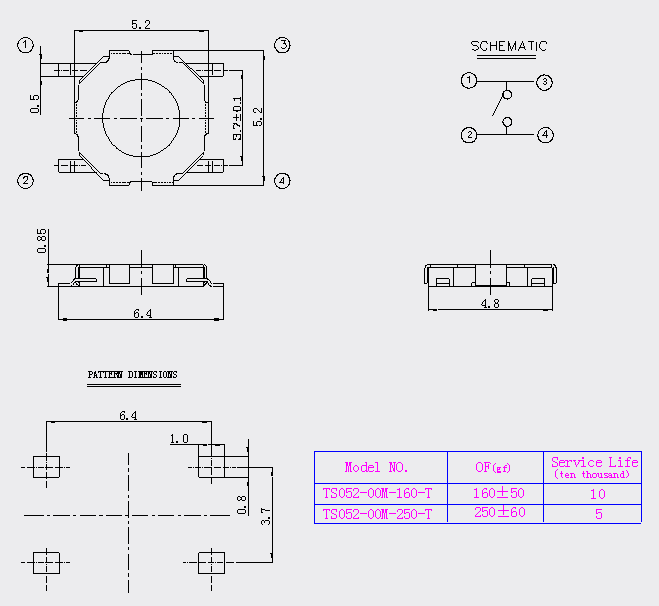

Electrical life: see the chart
Mechanical life: see the chart
Insulation Resistance: ＞100MΩ DC100V
Withstand Voltage: AC250V 1 minute
Contact Resistance: ＜100mΩ
Ambient Temper.: -25℃ to 70℃
Operating Force: 70±30 gf；100±30 gf；160±50 gf；250±60 gf；260±50 gf
Soldering Process: Hand soldering：Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1）
Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:（Figure 2）

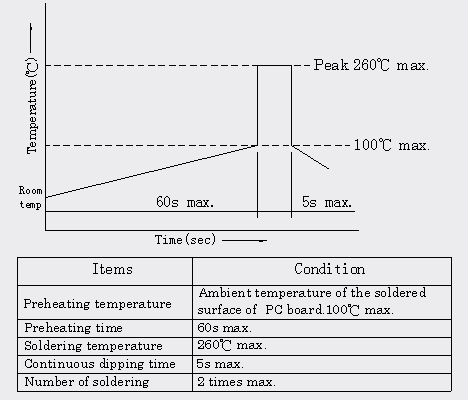

Wave Soldering ( Figure 1 )

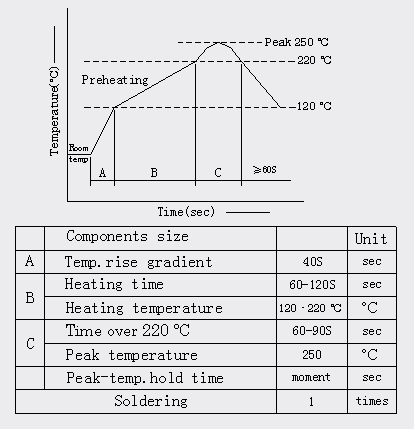

Reflow Soldering ( Figure 2 )
