Contact Rating: 50 mA @12VDC
Electrical life: see the chart
Mechanical life : see the chart
Insulation Resistance:>100MΩ DC500V
Withstand Voltage:AC250V 1 minute
Contact Resistance:<100mΩ
Ambient Temper.:-20℃ to 70℃
Operating Force:110±30 gf;180±50 gf;280±50 gf.
Soldering Process : Hand soldering:Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.

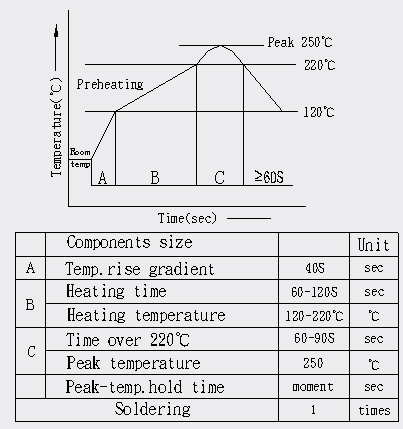

Reflow soldering: When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:(Figure 1)
Wave Soldering ( Figure 1 )
