Contact Rating：50 mA @ 12VDC;
Electrical life：1,000,000 cycles
Mechanical life：1,000,000 cycles min ；
Position Travel：0.25 ± 0.1
Insulation Resistance ：＞ 100M Ω DC250V ；
Withstand Voltage： AC250V 1 minute ；
Contact Resistance：＜ 100m Ω；
Ambient Temper.：-25 ℃ to 70 ℃；
Operating Force： 80 ± 20 gf ； 120 ± 30 gf ； 180 ± 50 gf ；
Soldering Process：Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering：When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Reflow soldering：When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 2 ）

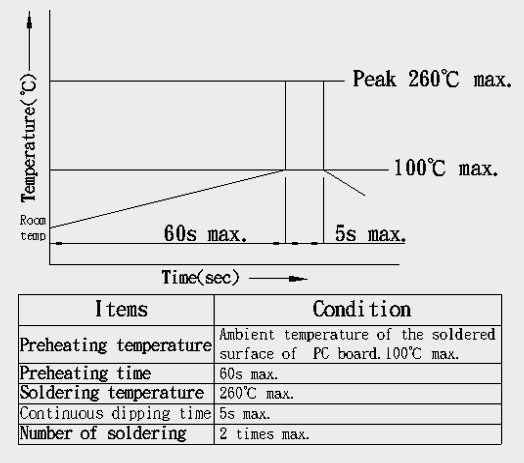

Wave soldering (Figure 1)

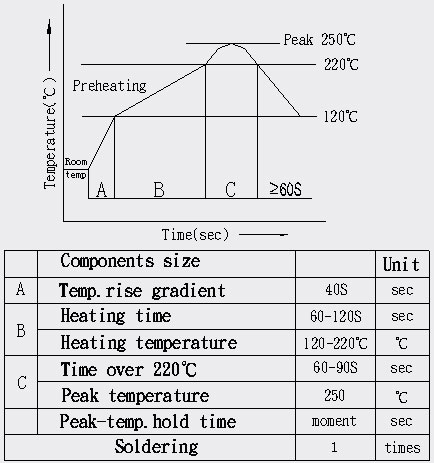

Rellow soldering (Figure 2)
