Contact Rating：50 mA @ 12VDC;
Electrical life：1,000,000 cycles
Mechaanical life：1,000,000 cycles min；
Position Travel：0.25±0.1
Insulation Resistance：＞100MΩ DC250V；
Withstand Voltage：AC250V 1 minute；
Contact Resistance：＜100mΩ；
Ambient Temper.：-25℃ to 70℃；
Operating Force：80±20 gf；120±30 gf；180±50 gf；
Soldering Process：Hand soldering：Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.

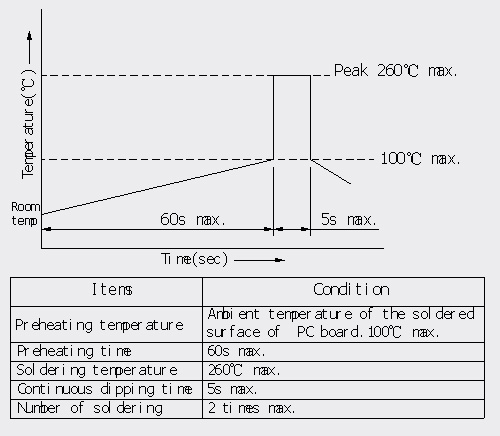

Wave soldering：When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1)

Wave soldering (Figure 1)
