DT-1 Series DOOR LOCK
Home > Products > Other Switches > Door Lock > DT Series

FEATURES:

  • Reliability is excellent
  • Mechanical life：min. 1 x 10 cycles
  • Good feeling and long life
SPECIFICATION

Mechanical life：10,000 cycles
Ambient Temper. ：-20 ℃ to 70 ℃
Operating Force：400 ± 200gf ； 600 ± 200gf ； 800 ± 200gf
MATERIALS

Switch Stem：PA66(UL94 V-0)
Color：Black
Switch Case：PA66(UL94 V-0)
Color：Black
Fixed Rod：PA66(UL94 V-0)
Color：Black
Switch Spring：Stainless steel

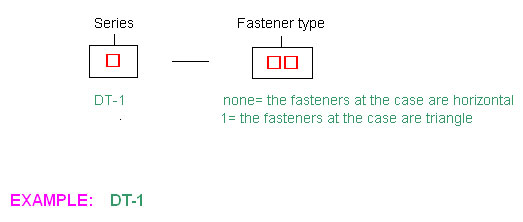

HOW TO ORDER

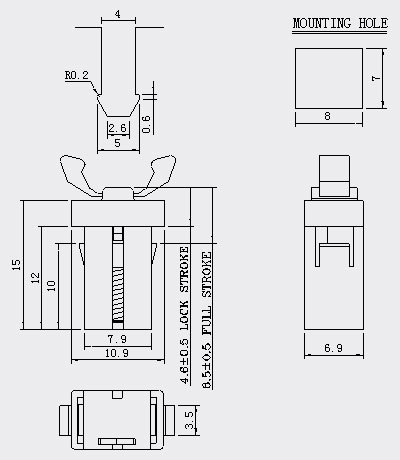

DIMENSION DRAWING of DT-1 (mm)

DT-1

PACKING EXPLANATION :

60,000 PCS for one big box(1,000 PCS for one bag, 10bags for one small carton,6 small cartons for one big box.)
