Mechanical life：30,000 cycles min；
Electrical life：30,000 cycles min；
Contact Rating：1mA @5VDC；
Insulation Resistance：＞100MΩ  DC100V；
Withstand Voltage：AC100V 1 minute
Contact Resistance：＜100mΩ；
Ambient Humidity: ＜85%RH
Operating Temper.：-25℃ to 70℃；
Operating Force：50gf；
Soldering process : Hand Soldering：Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder。
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1)

Reflow soldering: When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile:（Figure 2)

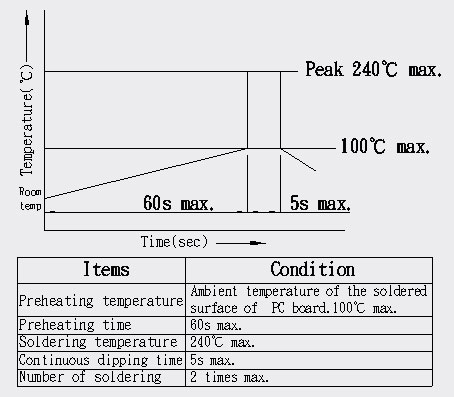

Wave soldering（Figure 1）

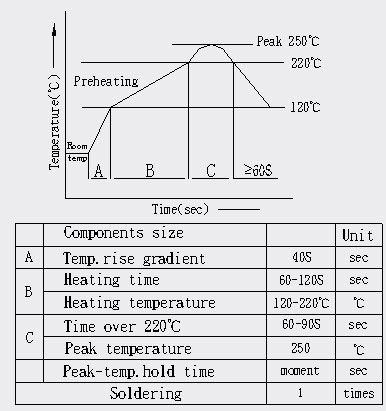

Rellow soldering（Figure 2）
