EN028M Series SWITCH ( ENCODERS Switches)
Home > Products > Other Switches > Encoders > EN028M Series

SPECIFICATION

Mechanical life:300,000 cycles min ;
(each upright and opposite rotate 150,000/cycles)
Electrical life : 300,000 cycles min ;
(each upright and opposite rotate 150,000/cycles)
Contact Rating:1 mA @10 VDC ;
Insulation Resistance:> 50M Ω DC50V ;
Withstand Voltage:AC50V 1 minute ;
Contact Resistance:< 10 Ω;
Ambient Humidity:< 85%RH ;
Operating Temper: -10 ℃ to 65 ℃;
Operating Force20gf ; 25gf.
Soldering process:Hand Soldering : Use a soldering iron of 30 watts , controlled at 380 ℃ approximately 3 seconds while applying solder 。
Wave soldering:When applying wave soldering, the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile( Figure 1 )
Reflow soldering:When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile( Figure 2 )

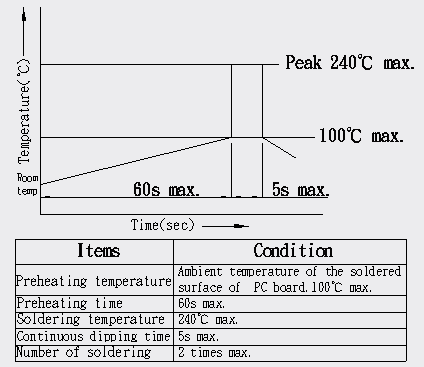

Wave soldering ( Figure 1 )

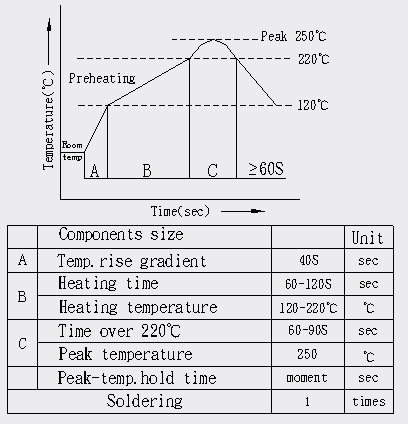

Rellow soldering ( Figure 2 )

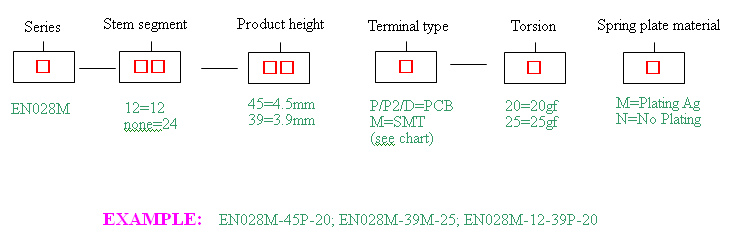

HOW TO ORDER

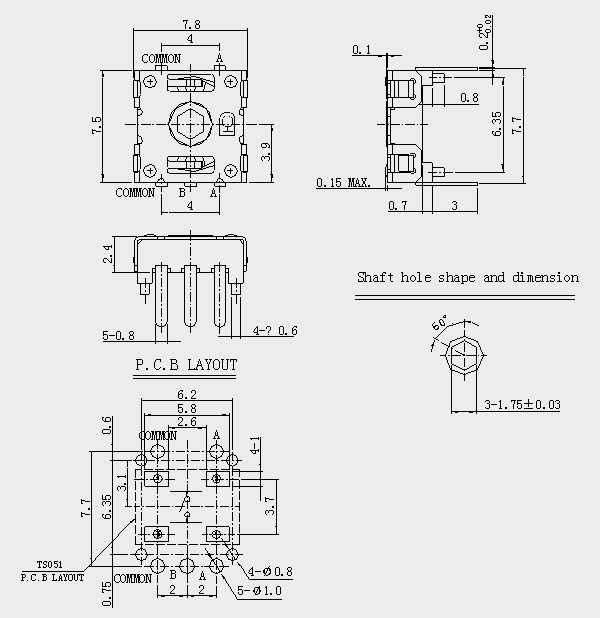

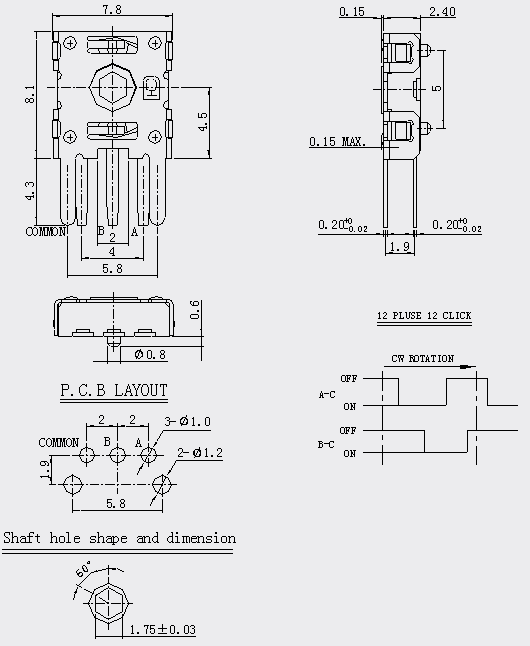

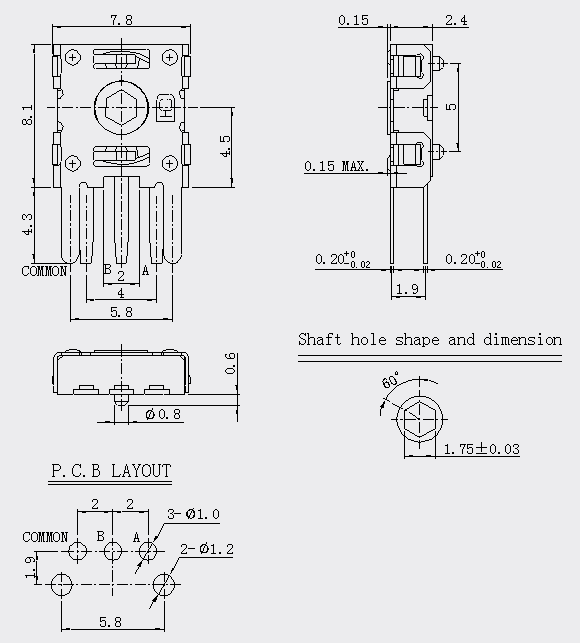

DIMENSION DRAWING (mm)

EN 028M -39D-25

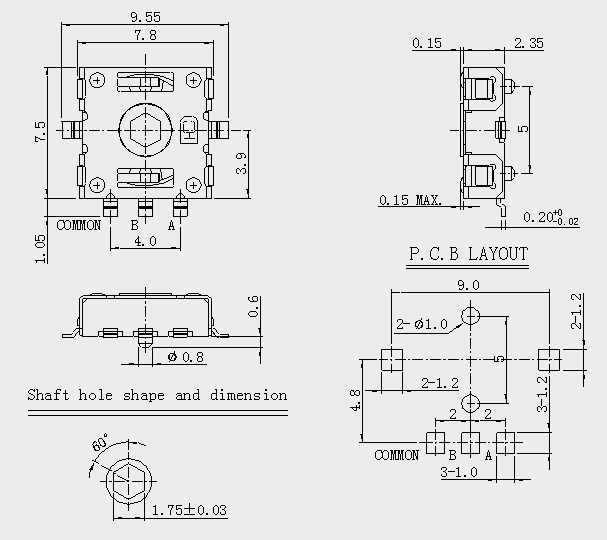

EN 028M-39M-25

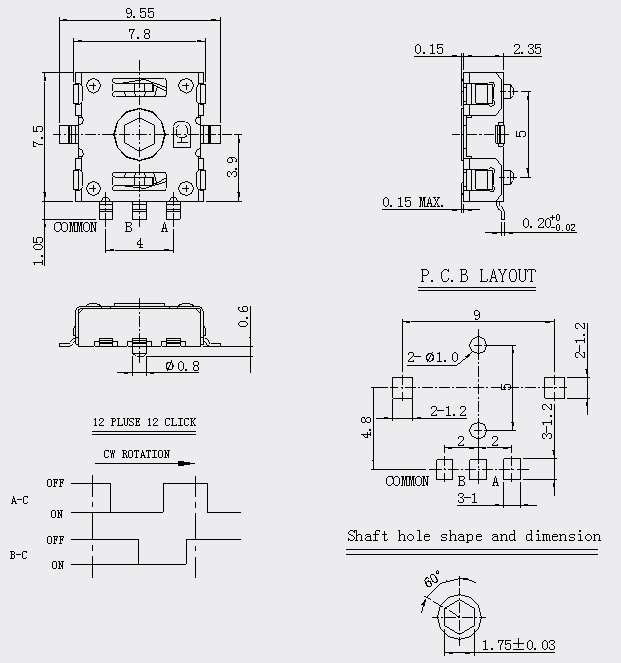

EN028M-12-39M -25

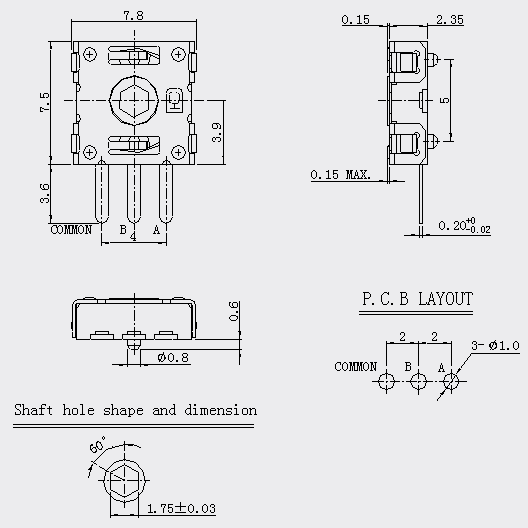

EN 028M -39P-25

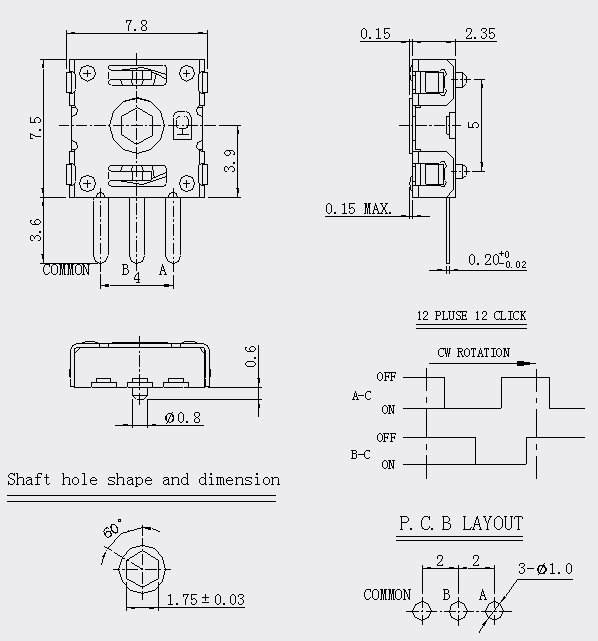

EN 028M -12-39P-25

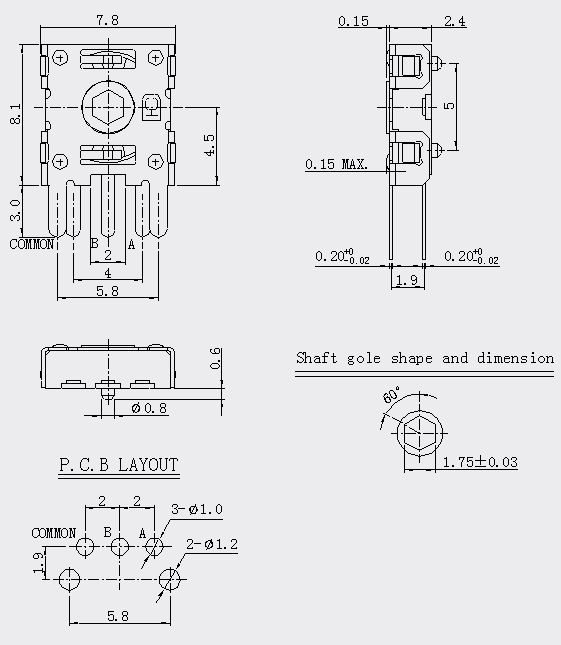

EN028M-45P-20

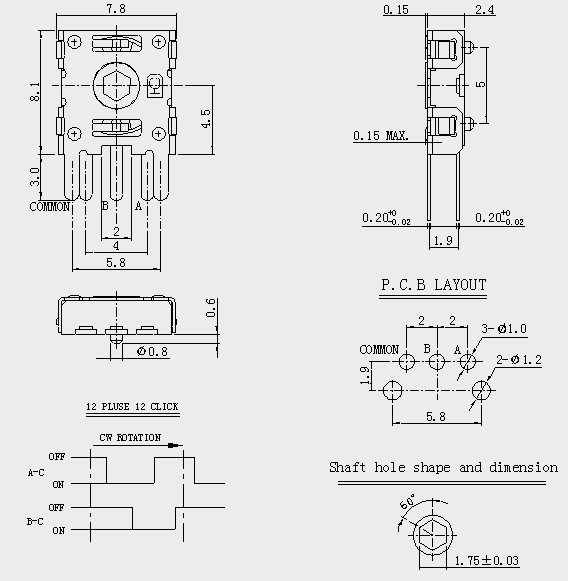

EN028M-12-45P-20

EN028M-45P2-20

EN028M-12-45P2-20

PACKING EXPLANATION :

Mainland:10000pcs for one big box (250pcs for one bag,two bags for one carton,20 cartons for one big box.)
HongKong:15000pcs for one big box (250pcs for one bag,two bags for one carton,30 cartons for one big box.)
