PS168 Series POWER SWITCH
Home > Products > Other Switches > Power Switches > PS168 Series

FEATURES:

Mechanical life ： min. 1 x 10cycles ；
Good feeling 。

SPECIFICATION
Contact Rating：5/80A @ 250VDC Electrical life： 6,000 cycles min Mechanical life：100,000 cycles Insulation Resistance ：＞ 500M Ω DC500V Withstand Voltage：AC2000V 1 minute Contact Resistance ：＜ 50m Ω Ambient Temper.：-25 ℃ to 70 ℃ Operating Force：500 ± 200 gf Soldering Process：Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.

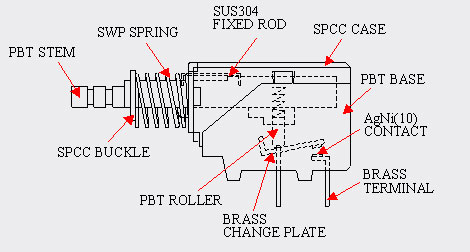

MATERIALS

Switch Stem：PBT (UL94 V-0)
Switch Buckle：SPCC
Spring：SWP
Case：SPCC
Base：PBT (UL94 V-0)
Contact：Silver alloy
Terminal：Brass
Change Plate：Brass
Roller：PBT (UL94 V-0)
Fixed rod：SUS304

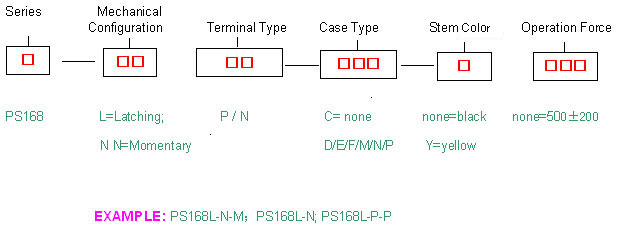

HOW TO ORDER

DIMENSION DRAWING (mm)

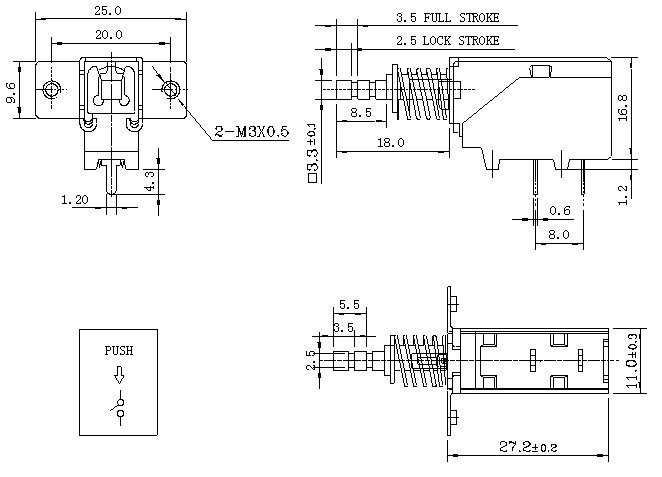

PS168L-N-M

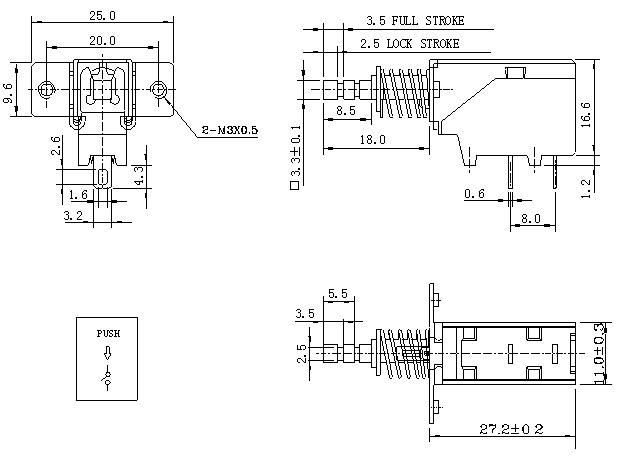

PS168L-P-M

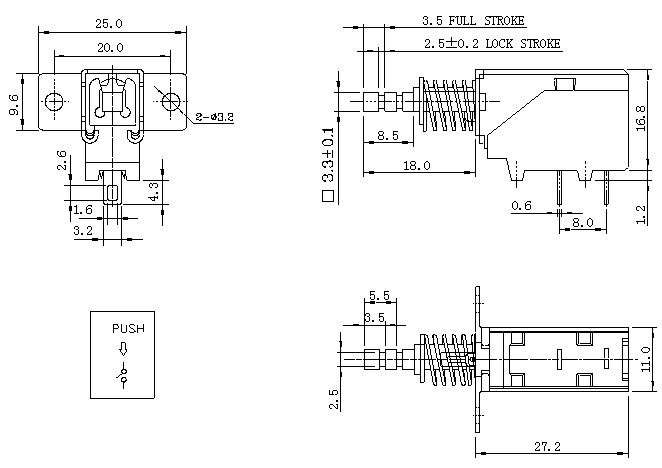

PS168L-P-P

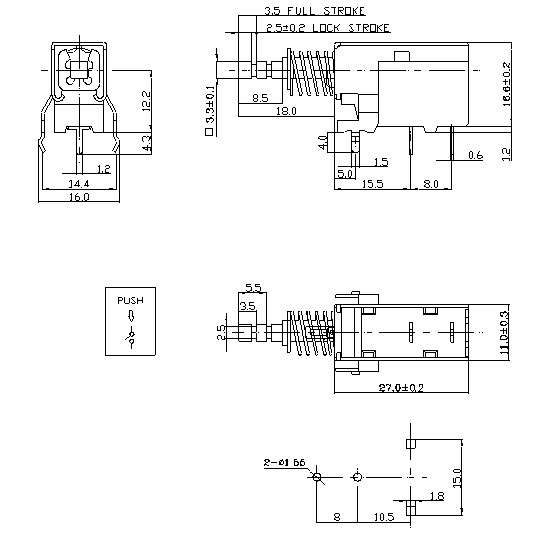

PS168L-N

PACKING EXPLANATION :
1800 PCS for one big box(100 PCS for one bag, 3bags for one small box,6 small boxes for one big box.)
